Hệ thống nhúng
PI900

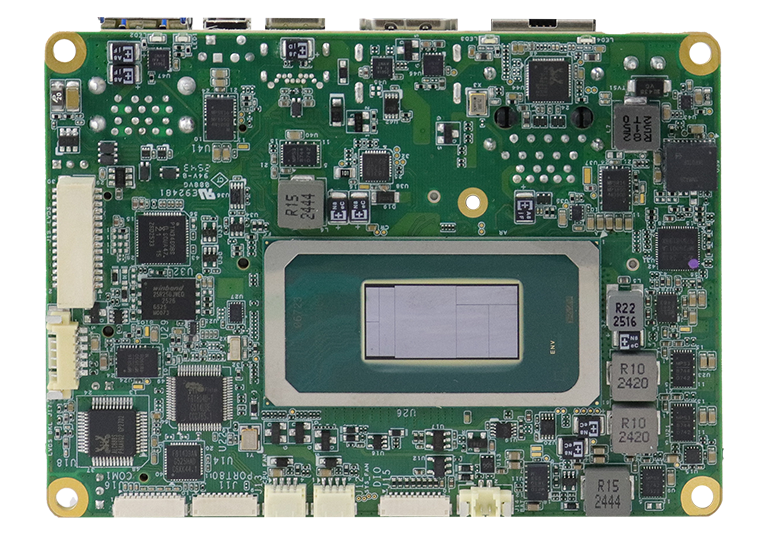

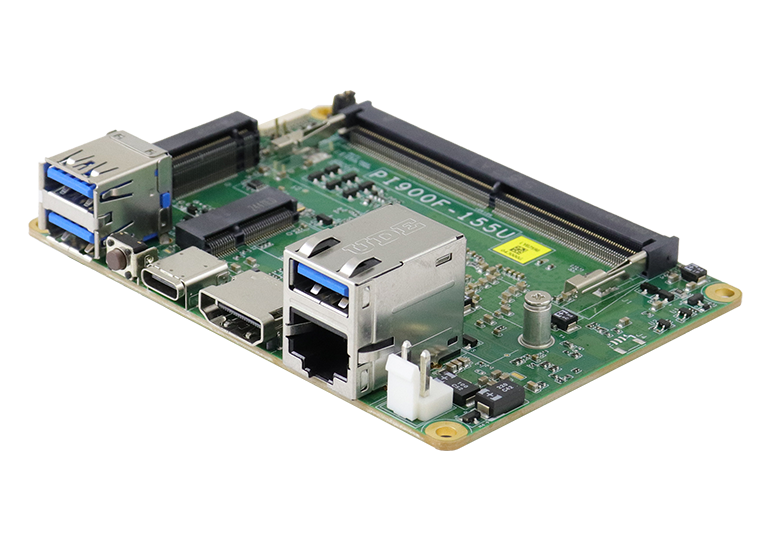

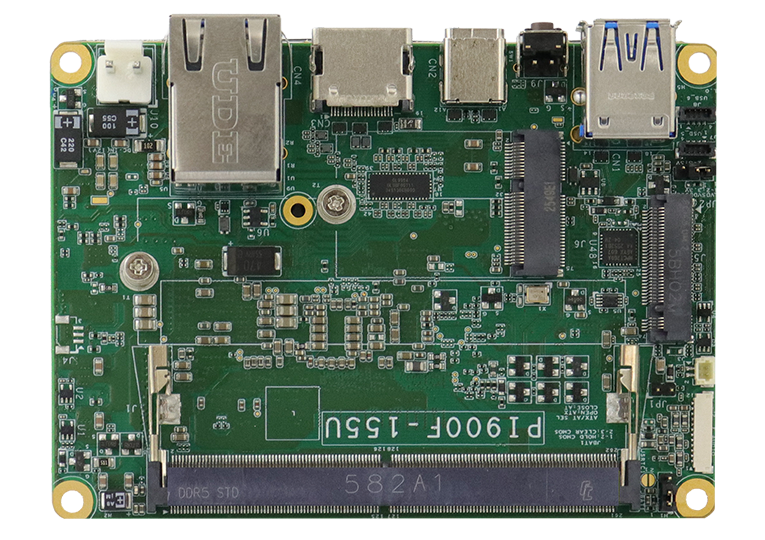

PICO-ITX Motherboard with Intel® Core™ Ultra 100U Series Processors (Meteor Lake)
- Intel® Core™ Ultra 100U Series Processors (15W TDP)
- 1x DDR5-5600 SO-DIMM, Max. 48GB
- Supports DisplayPort (1.4a), HDMI (2.0), LVDS

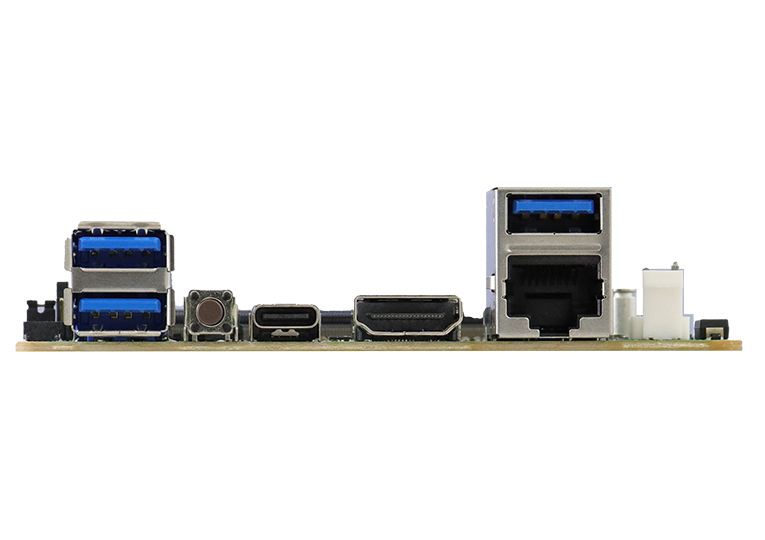

- 3x USB 3.2 (Type-A), 2x USB 2.0 (pin-header), 1x USB 3.2 (Type-C)
- 1x RTL-8125BG-CG PCIe 2.5G LAN, 1x COM
- 2x M.2 slots (M2280+E2230)
- Watchdog Timer, Digital I/O, dTPM, +12V DC input only
The PI900 is an ultra-compact Pico-ITX motherboard combining integrated AI acceleration with up to 48GB of DDR5-5600 memory. Powered by Intel® Core™ Ultra 100U Series processors featuring up to 12 cores and 14 threads, the PI900 integrates CPU, GPU, and NPU capabilities to accelerate edge AI processing and support data-intensive workloads. Its compact, highly integrated design makes it ideal for smart retail, machine vision, kiosk, and other demanding embedded applications.
Designed for greater system flexibility, the PI900 supports HDMI 2.0, DisplayPort 1.4a via USB Type-C, and LVDS display interfaces. Its versatile expansion architecture enables system integrators to configure the platform for diverse project requirements. For system integration, the PI900 provides an M.2 M-Key socket supporting NVMe or SATA storage and an M.2 E-Key socket for optional WiFi and Bluetooth connectivity. Integrated 2.5GbE LAN, multiple USB interfaces, an RS-232/422/485 serial port, and digital I/O support peripheral connectivity across a range of embedded applications.
Measuring only 100mm x 72mm, the PI900 delivers advanced computing performance, edge AI capabilities, and high-capacity memory support within space-constrained embedded equipment. A discrete TPM, 256-level watchdog timer, hardware monitoring, and +12V DC input help ensure secure and reliable system operation. Available with Intel Core Ultra 5 125U or Core Ultra 7 155U processors, the PI900 offers a scalable platform for developing smarter, more responsive, and space-efficient embedded solutions.
| CPU | Intel® Core™ Ultra 100U Series |
| PCH | N/A |
| Memory | 1x DDR5-5600 SO-DIMM, Max. 48GB |
| BIOS | AMI |
| Watchdog Timer | 256 levels |
| H/W Monitor | Yes |
| Storage Device Interface | NVMe |
| Expansion Slots | 1x M.2 (M2280), 1x M.2 (E2230) |
| Mini Type Slots | 1x M.2 (M2280, supports NVMe & SATA) 1x M.2 (E2230, supports WiFi / BT) |
| Graphics Controller | Intel® SoC integrated graphics |
| Video Output | 1x HDMI (2.0) 1x DisplayPort (1.4a) via Type-C 1x LVDS |
| Ethernet | 1x Realtek 8125BG-CG PCIe 2.5GbE LAN port |
| I/O Chip | Fintek F81804U-I |
| Serial Port | 1x RS232/422/485 |
| USB 2.0 | 2x USB 2.0 thru onboard connectors |
| USB 3.X | 3x USB 3.2 @ edge I/O,1x USB 3.2 (Type-C) |
| Serial ATA | via M.2 M-key socket |
| Audio | Realtek Codec ALC888S-VD2-GR |
| TPM | dTPM |
| Others | Digital I/O (4-in/4-out), +12V DC input |
| Dimensions (L x W) | 100mm x 72mm (3.94” x 2.84”) |
| Power Consumption | Intel® Core® Ultra 7 155U / up to 4.80GHz w/ 1x 32GB DDR5 – 5600 +12V :5.93A Intel® Core® Ultra 5 125U / up to 4.30GHz w/ 1x 32GB DDR5 – 5600 DIMM +12V :5.91A |
| Operating Temperature | 0°C~+60°C ( 32°F~+140°F) |
| Storage Temperature | -20°C~+80°C (-4°F~+176°F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
| PI900F-125U | PICO-ITX, Intel® Core™ Ultra 5-125U SoC onboard, w/ LVDS, DisplayPort, HDMI, 2.5GbE LAN, 1x COM, 1xSATA III, 2xM.2, dTPM, +12V DC-in, Optional Heatsink & cable kit (RoHS2) |
| PI900F-155U | PICO-ITX, Intel® Core™ Ultra 7-155U SoC onboard, w/ LVDS, DisplayPort, HDMI, 2.5GbE LAN, 1x COM, 1xSATA III, 2xM.2, dTPM, +12V DC-in, Optional Heatsink & cable kit (RoHS2) |

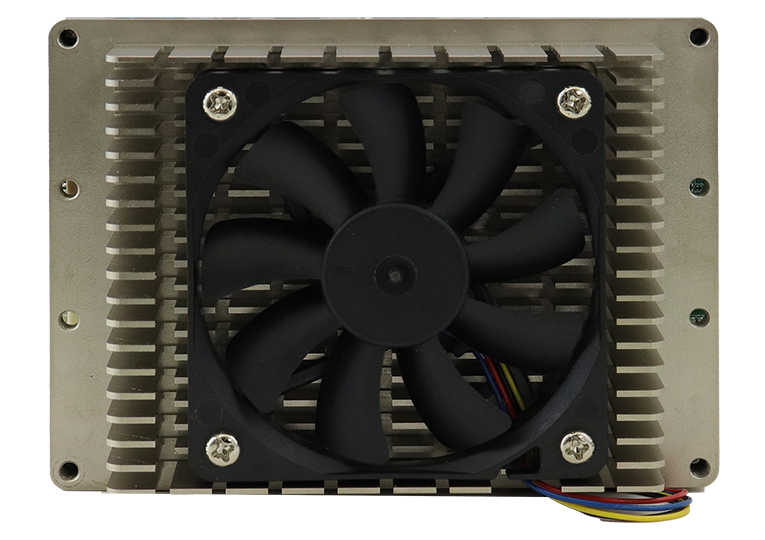

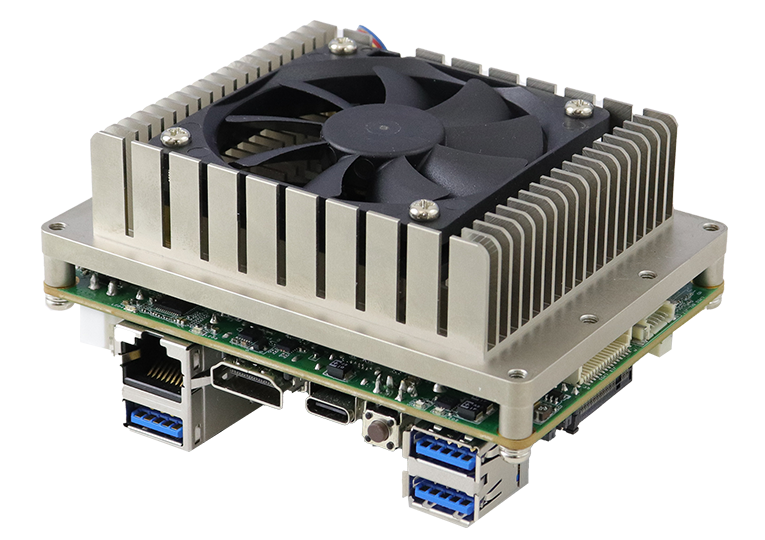

| HSPI900-C | Heatsink with fan for PI900 |
| BẢNG DỮ LIỆU | PI900 |
| CATALOGS | Embedded Computing (Vol.2605) |
| HƯỚNG DẪN SỬ DỤNG | PI900 V1.0A (IBASE Server) PI900 V1.0A (Google Drive) |
| DRIVERS - Bo mạch | PI900 Driver DVD |
