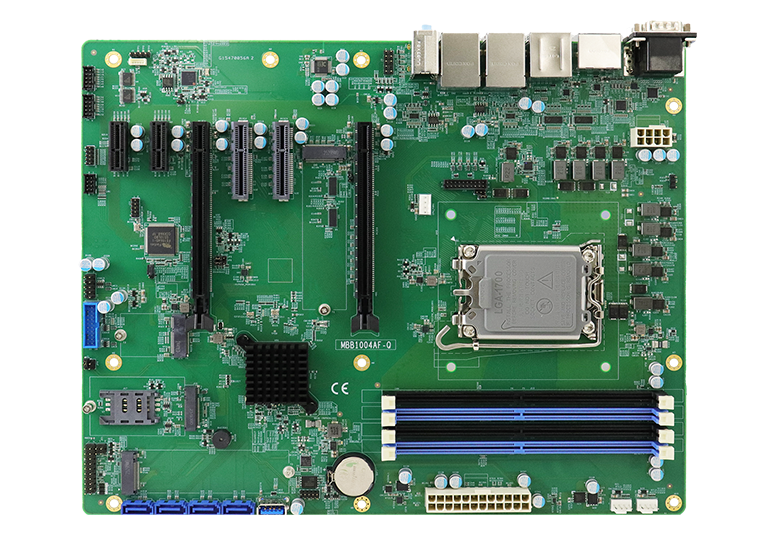

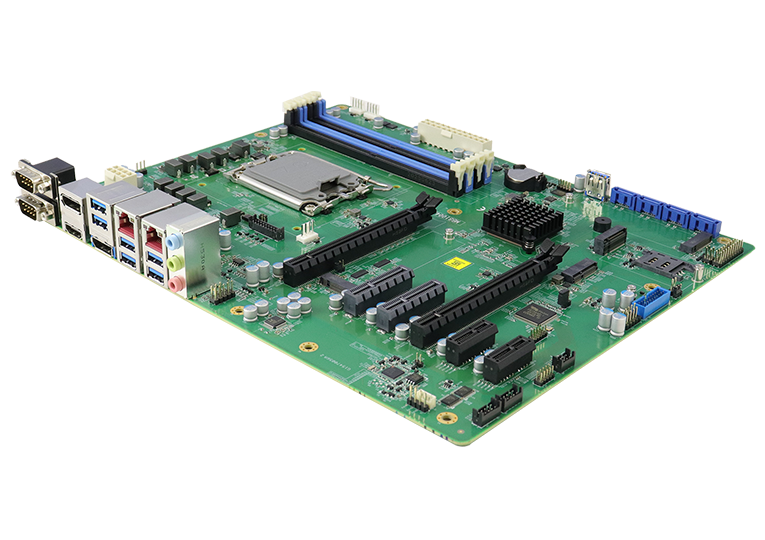

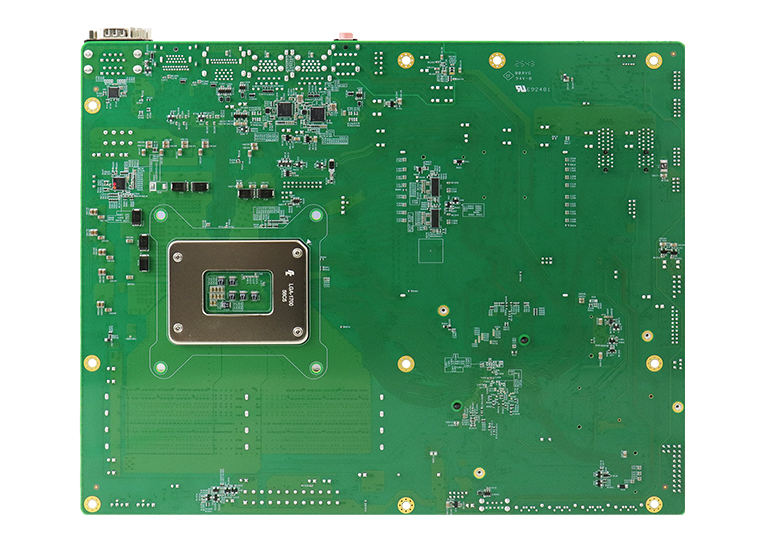

MBB1004

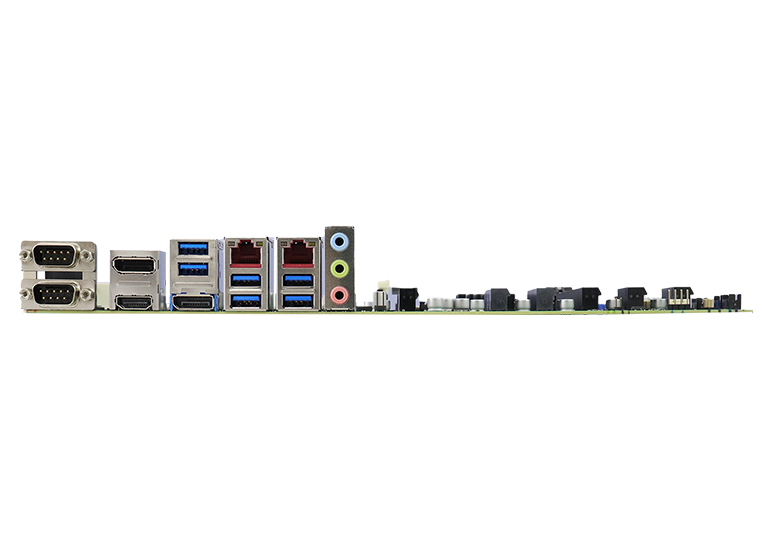

Built on the Intel® R680E and Q670E chipsets, the MBB1004 provides a stable and feature-rich foundation for industrial automation, edge computing, machine vision, and intelligent infrastructure systems. The platform supports up to 192 GB of DDR5 memory across four U-DIMM slots, enabling high-speed data processing and efficient multitasking for compute-intensive industrial workloads. It integrates dual 2.5GbE LAN, featuring Intel Ethernet Controller I226 Series with Intel Active Management Technology (iAMT) support for remote management, along with a rich set of industrial I/O such as USB 3.2, RS232/422/485 serial ports, digital I/O, a watchdog timer, and TPM 2.0 for enhanced system security.

To meet advanced system integration requirements, the MBB1004 offers robust expansion with dual PCIe(x16) [Gen5.0] slots, additional dual PCIe(x4) [Gen4.0] and PCIe(x1) [Gen3.0] slots, and four M.2 sockets supporting NVMe storage, CNVi wireless modules, and 5G connectivity. Multiple display outputs, including DisplayPort, HDMI, and DVI-D, provide flexible multi-display support for visualization, monitoring, and control applications across industrial environments.
