INA7605
搭載兩顆第5代 Intel® Xeon® Scalable處理器,支援最高達64個GbE的高性能2U機架式網路設備
- Dual 5th Gen Intel® Xeon® Scalable Processors
- 16x DDR5 RDIMM, Max. 1,024GB
- Max. 8x NIC modules; Max. 64 GbE ports (Optional)
- Max. 8x 2.5” HDD Swappable
- Optional IPMI 2.0 module
- 1x PCI-E (x16) expansion slot

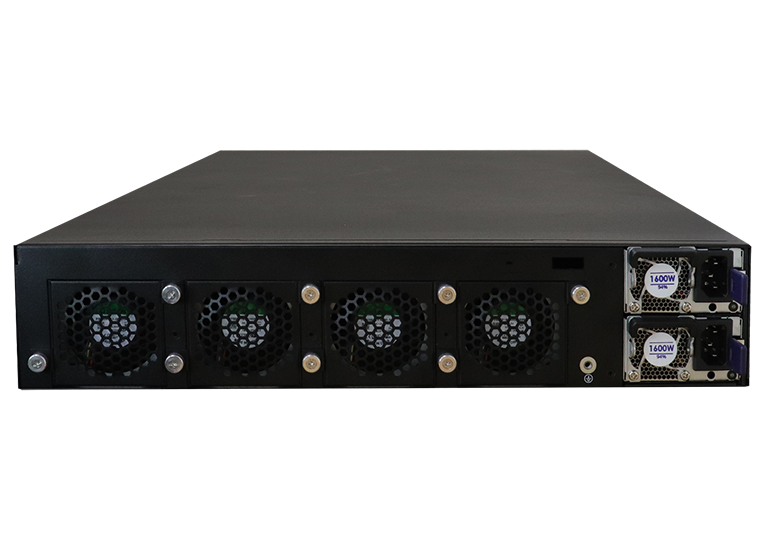

- 2x 1600-watt redundant power supply
The INA7605 is a powerful 2U rackmount platform designed to cater to the growing demands of data centers and network infrastructure, enhancing processing capabilities and network throughput with cutting-edge technology and robust build.
It comes equipped with dual 5th Gen Intel® Xeon® Scalable (formerly Emerald Rapids) Processors, providing unmatched computational power and efficiency, as well as support for up to 16x DDR5 RDIMMs that can handle up to 1,024GB of memory. Network flexibility is maximized with options for up to 8x NIC modules, allowing up to 64 GbE ports. Storage options are also expansive with up to 8x 2.5” swappable HDD bays, and system management is streamlined through an optional IPMI 2.0 module. The INA7605 also includes a 1x PCI-E (x16) expansion slot and is supported by 2x 1600-watt redundant power supplies, ensuring reliability and uninterrupted service.
There are two variants of the INA7605 to meet diverse needs: The INA7605-SHQ and INA7605-NIC. Both models feature the powerful MBN7605 Intel Emerald Rapids processor, 16x DDR5 RDIMMs, and a 1600W redundant PSU. The INA7605-SHQ is tailored for external storage scalability with 8x 2.5-inch HDD bays and 4x IBN expansion slots. On the other hand, the INA7605-NIC focuses on internal storage integration with 2x 2.5-inch HDD bays and 8x IBN expansion slots. Both models are offered as barebone systems, allowing customers to customize RAM, HDD, and drive bays as per their specific requirements.
CPU | Dual 5th Gen Intel® Xeon® Scalable Processors LGA4677 (Emeralds Rapids) |
Chipset | Intel® C741 PCH chipset |
Memory | 16x DDR5 RDIMMs up to 4800 MT/s, Max. 1,024GB |
Display | 1x VGA (via optional IDN101 module) |
Ethernet | Onboard: 2x Intel® I210-AT GbE NIC module slots: Max. 8x IBN cards, Max. 64 GbE |
Bypass | Via IBN module SKU |
Expansion | 1x PCI-E x16 expansion slot 1x M.2 (PCI-E, SATA ) |
IPMI | Optional module, compliant with IPMI 2.0 |
Storage | HDD: 8x 2.5” Swappable (by SHQ SKU) 1x M.2 NVME 2280 1x SATA DOM |
TPM | TPM 2.0 |
I/O | 1x LCM 3x LED (Power / HDD / Status) 1x RJ45 console 2x USB 2.0 2x MGMT ports (LAN2 share with IPMI NC-SI port) |
Power Supply | Full range 1600W 1+1 redundant power supply |
Dimensions | 438(W) x 660(D) x 87.5(H)mm 17.24” (W) x25.9” (D) x 3.44” (H) |
Weight | 24kg |
Operating Temperature | 0°C~ 40°C (32°F~104°F) |
Storage Temperature | -20° ~ 70°C (-4°F~158°F) |
Operating Humidity | 5% ~ 90% |
Certification | CE/FCC |
INA7605-SHQ | 2U Rackmount Appliance, MBN7605 Intel Emerald Rapids Processor,16x DDR5 RDIMM, 1600W Redundant PSU, CPU cooler, 8x 2.5" external HDD, 4x IBN expansion slot, Barebone without RAM/HDD/Drive Bay Kit |
INA7605-NIC | 2U Rackmount Appliance, MBN7605 Intel Emerald Rapids Processor, 16x DDR5 RDIMM, 1600W Redundant PSU, CPU cooler, 2x 2.5" internal HDD, 8x IBN expansion slot, Barebone without RAM/HDD/Drive Bay Kit |
