AMS300S

* 針對工廠自動化應用量身打造的創新型高擴充性模組化系統，可讓客戶依需求選擇PCI-E/PCI或Fieldbus擴充模組機箱

* 特別設計2MB MRAM的擴充模組，使其不需要更換備用電池即可提供電力，在系統斷電時還能妥善保存資料

* 針對工廠應用端實際需求提供多元的電源保護功能，如過電壓保護，低電壓保護和反插功能保護等

* 預留一組風扇的訊號到擴充卡上，使其在溫度過高的環境中，亦可自行組裝散熱風扇以協助散熱

* 可同步支援VESA壁掛或DIN導軌安裝方式，以增加系統固定的彈性，適用於不同的工廠環境設備

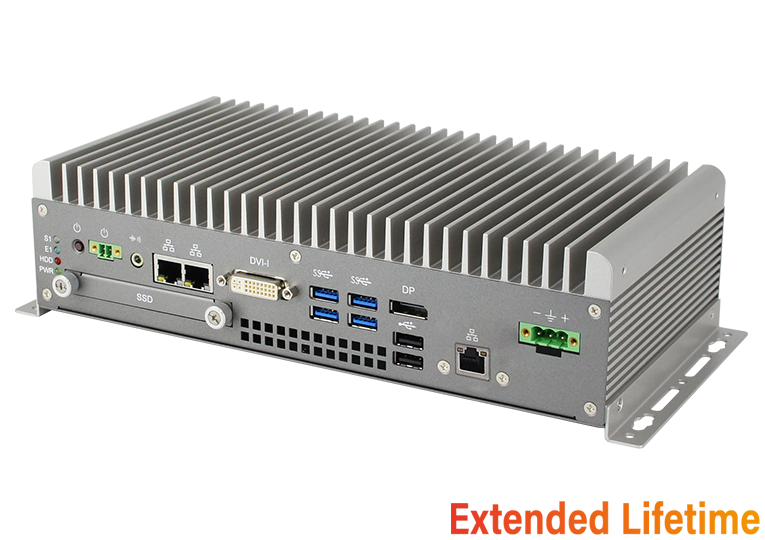

The AMS300 is a compact, yet expandable fanless system designed for industrial control and measurement processes in smart factory automation applications. It is powered by 7th/6th Gen Intel® Core™ i7/i5/i3 processors and comes integrated with 8GB memory as well as 64GB of industrial-grade SSD storage. An optional 2MB MRAM expansion module is available to store data even without power. The AMS300 is built with two module compartments for PCI-E/PCI cards and Fieldbus modules, giving flexibility to customers to configure the various I/O required. The unit also features high vibration and shock resistance crucial for deployment in harsh conditions and all interfaces situated on one side for easy assembly and expansion.

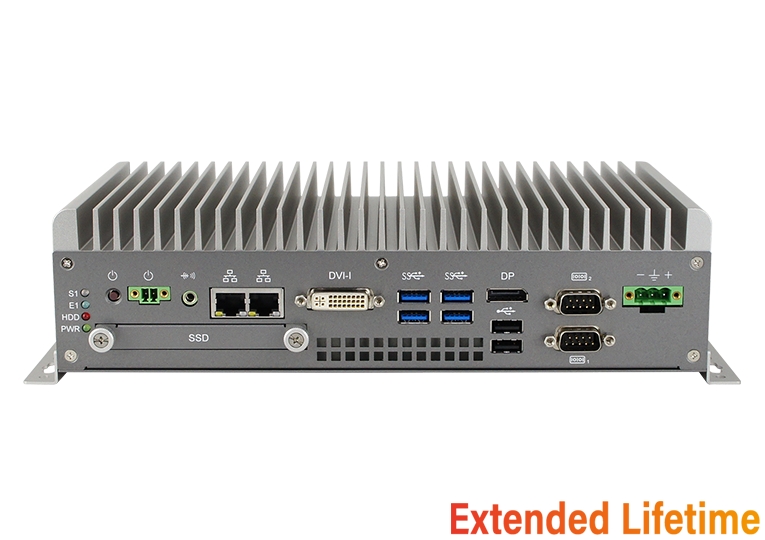

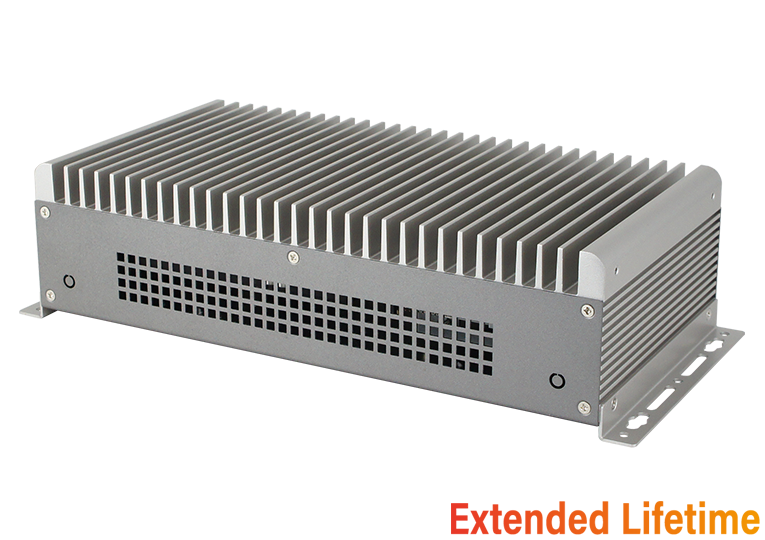

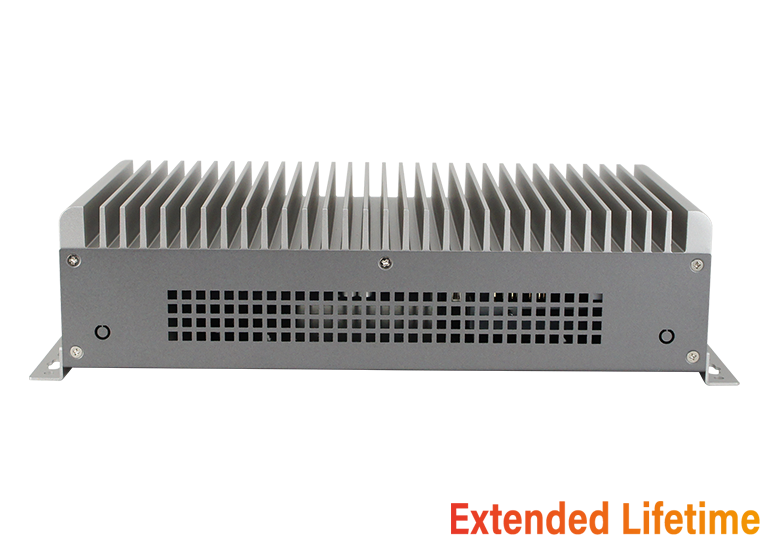

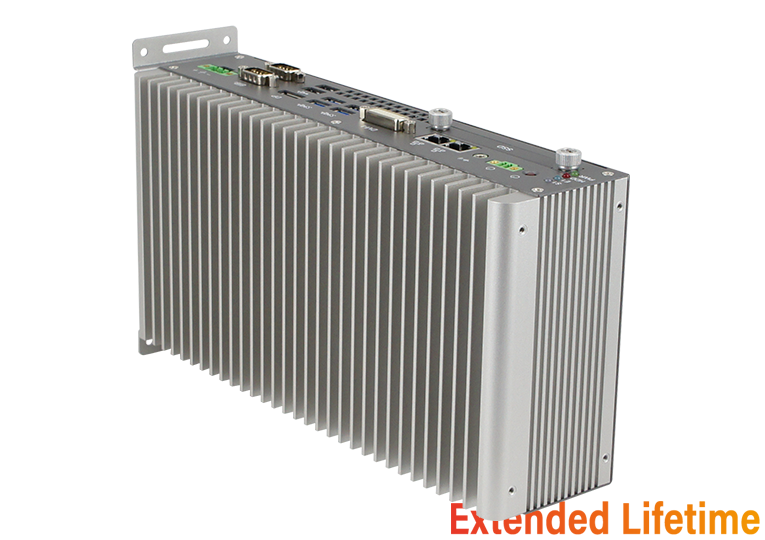

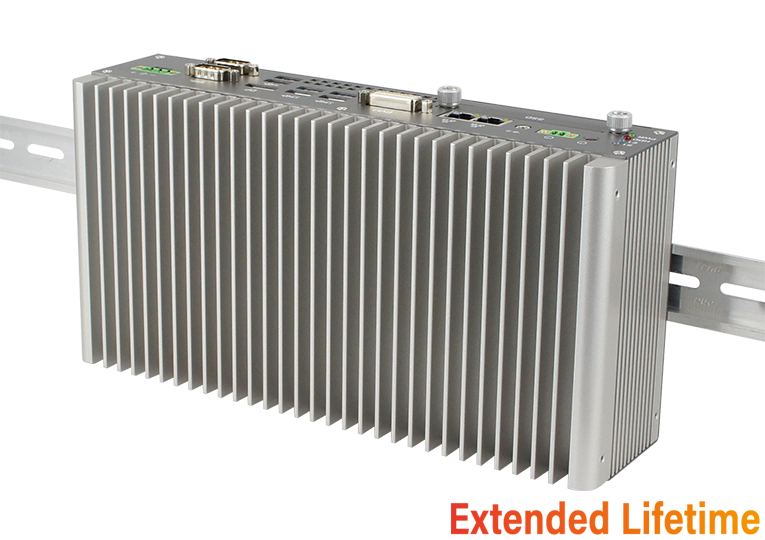

 Built with a passive finned heat sink, the rugged AMS300 boasts of superb thermal performance while reliably operating at a temperature range of -10°C to 60°C. It adopts wall, side and DIN-rail mounting to securely fit in space-constrained and industrial environments. Advanced features include iAMT (11.6) for remote management and repair of systems and IBASE’s owned iSMART technology that enables energy-efficient systems with various power-saving functions. AMS300 offers extensive I/O connectivity including a drive bay with RAID 0/1 support, a 24V DC terminal block, 4x USB 3.0 which can be used as machine vision camera interface, 2x USB 2.0, 2x COM, 2x Gigabit Ethernet and video outputs for DVI-I and DisplayPort interface.

 To meet customer specific requirements, the AMS301, an AMS300 variant model, houses an extension module with an IP301 card with 3x mPCIe slots that can be installed with optional PROFINET and PROFIBUS Fieldbus modules. The AMS302, on the other hand, has an IP302 expansion card with interface for USB, COM, PCI-E(x8) and PCI-E(x4) devices.
