産業用CPUボード

IB966

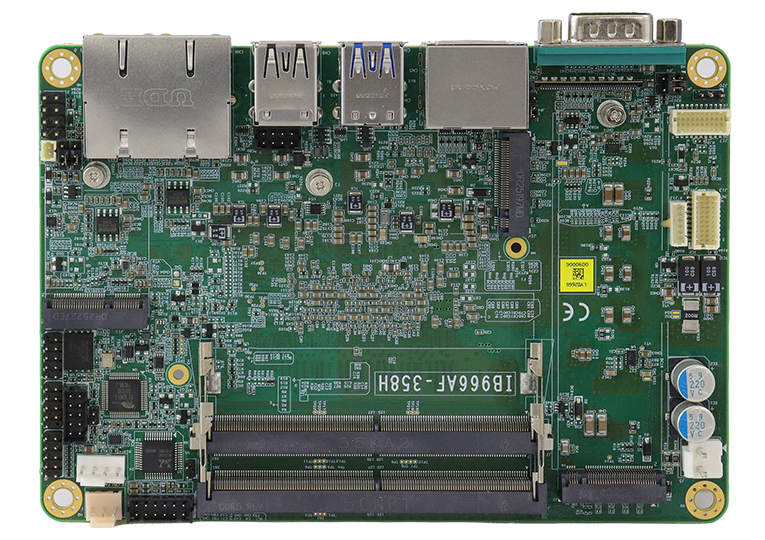

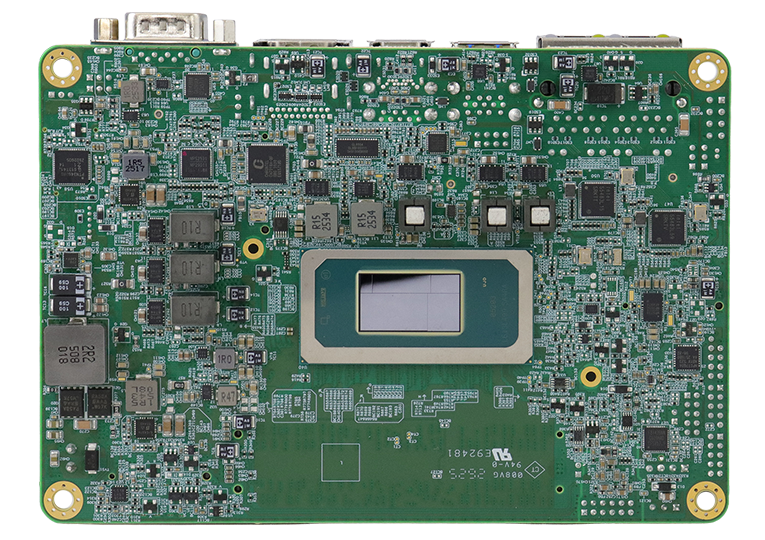

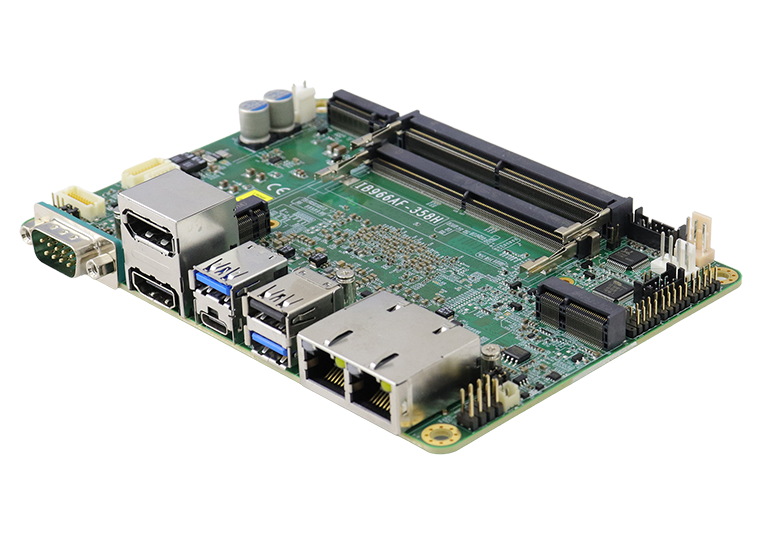

3.5" Single Board Computer with Intel® Core™ Ultra 300 Series Processor

Intel® Core™ Ultra 300 Series Processor (up to 180 TOPS)
2x DDR5 SO-DIMM, Max. 128GB
Supports HDMI,DisplayPort (DisplayPort connector & Type-C), LVDS and eDP

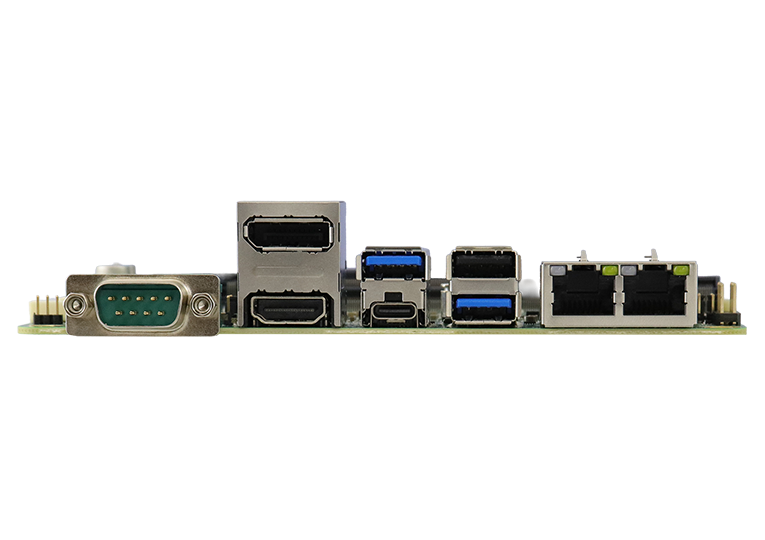

2x 2.5G LAN, 3x USB 3.2(Type-C&Type-A), 3x USB 2.0, 2x COM
3x M.2 slots (M2280+M2242+E2230), 12V~24V DC-in
Digital I/O (4-in/4-out), iAMT, dTPM & Watchdog Timer

概要
仕様書
注文情報
ダウンロード

The IB966 is a high-performance 3.5-inch single board computer powered by Intel® Core™ Ultra Series 3 processors (formerly Panther Lake). Delivering up to 180 TOPS of total AI performance in its top configuration, the compact board provides powerful computing for real-time AI inference, machine vision, data analytics, and industrial automation at the edge.

Available with Intel Core Ultra X7 358H, Intel Core Ultra 7 356H, and Intel Core Ultra 7 355 processors, the IB966 integrates CPU, GPU, and NPU computing resources on a single platform. This heterogeneous architecture efficiently distributes diverse workloads across the most suitable processing engines, accelerating local decision-making while reducing latency, network traffic, and reliance on cloud processing. Two DDR5-7200 SO-DIMM sockets support up to 128GB of memory for data-intensive edge AI applications and demanding multitasking.

The IB966 provides extensive connectivity through dual 2.5GbE LAN, USB 3.2, USB 2.0, and two RS232/422/485 serial ports. Display options include HDMI, DisplayPort, USB Type-C with DisplayPort, LVDS, and eDP, while three M.2 slots support high-speed NVMe storage and wireless connectivity. Additional features such as 12V–24V DC input, digital I/O, Intel® AMT, discrete TPM, and a programmable Watchdog Timer support secure, manageable, and dependable deployment. The IB966 is ideal for machine vision, smart manufacturing, intelligent transportation, medical imaging, smart retail, and other demanding edge AI applications.

CPU	Intel® Core™ Ultra 300 Series Processor
PCH	N/A
Memory	2x DDR5 SO-DIMM, 7200MT/s, Non-ECC, Max.128GB
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	2x M.2 (M2280& M2242 for NVMe)
Mini Type Slots	1x M.2 (M2280, supports NVMe only) 1x M.2 (M2242, supports NVMe only) 1x M.2 (E2230, supports CNVi)
Graphics Controller	Intel® Core™ Ultra 300H Processor built-in Xe3 Graphics
Video Output	HDMI, DisplayPort (DisplayPort connector & Type-C), LVDS and eDP
Ethernet	Intel® I226LM as 1st LAN, I226V as 2nd LAN
I/O Chipset	Fintek F81804U-I on board
Serial Port	2x RS232/422/485
USB 2.0	3x USB 2.0 (1x Type-A ; 2x via pin headers)
USB 3.X	1x USB 3.2 (Type-C), 2x USB 3.2 (Type-A)
Serial ATA	N/A
Audio	Intel® Core™ Ultra processor built-in HD audio + ALC888S codec
TPM	dTPM
Others	Digital I/O (4-in/4-out), iAMT; +12V~+24V DC-in
Dimensions (L x W)	102mm x 147mm (4“ x 5.8“)
Power Consumption	TBD
Operating Temperature	0°C~60°C (32°F~140°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	10% ~ 90% (non-condensing)

IB966AF-358H	Intel® Core™ Ultra X7 358H SoC, onboard 3.5" SBC, w/ dual 2.5Gb, HDMI + 2x DisplayPort (DisplayPort connector & Type-C), LVDS & eDP, 2x COM, 3x M.2, supports iAMT& dTPM, DC-in (12V~24V),Optional heatsink
IB966AF-356H	Intel® Core™ Ultra 7 356H SoC, onboard 3.5" SBC, w/ dual 2.5Gb, HDMI + 2x DisplayPort (DisplayPort connector & Type-C),LVDS & eDP 2x COM, 3x M.2, supports iAMT& dTPM, DC-in (12V~24V),Optional heatsink
IB966AF-355	Intel® Core™ Ultra 7 355 SoC, onboard 3.5" SBC,w/ dual 2.5Gb, HDMI + 2x DisplayPort (DisplayPort connector & Type-C),LVDS & eDP, 2x COM, 3x M.2, supports iAMT& dTPM, DC-in (12V~24V),Optional heatsink

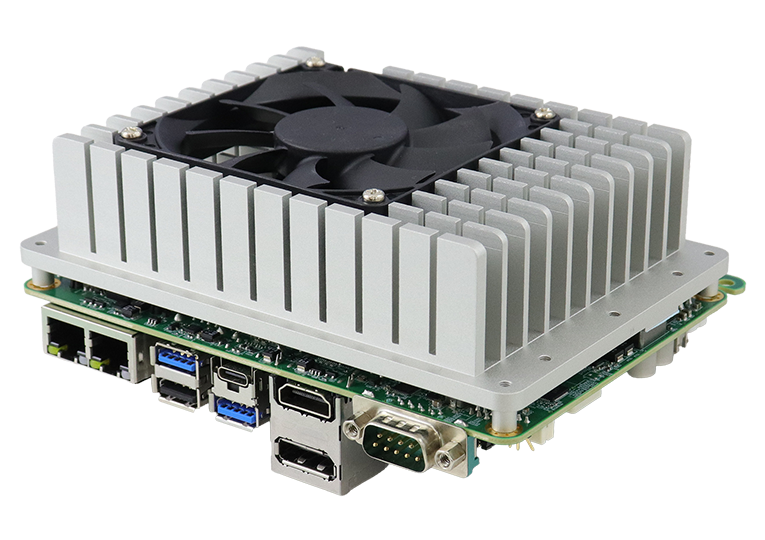

HSIB966-B	Heatsink with fan for IB966

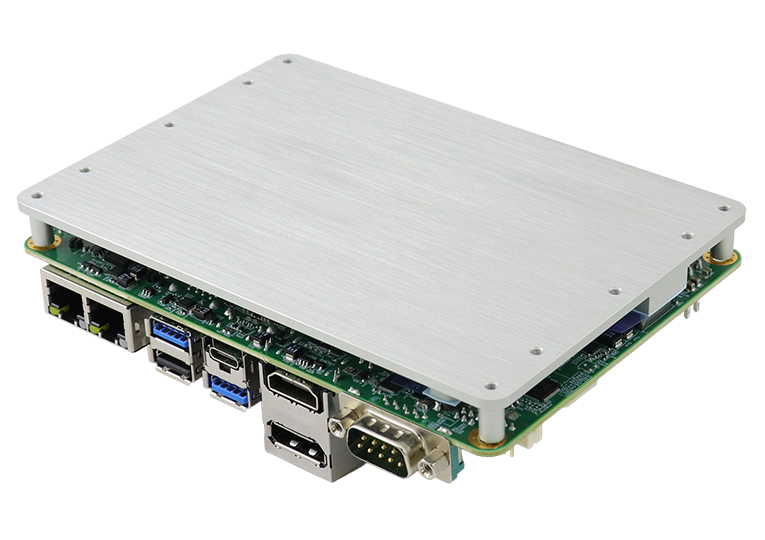

HSIB962-2	Heat Spreader for IB966
IB76A-3	Cable Kit w/ USB, COM & Power

製品のデータシート	IB966
製品のカタログ	Embedded Computing (Vol.2605)
説明書	IB966 V1.0 (IBASE Server) IB966 V1.0 (Google Drive)
ドライバー - ボード	IB966 Driver DVD
