産業用組込みPC
INA8505
Edge AI Server with Intel® Xeon® D Processor & up to 4x 25 GbE Ports
- Intel® Xeon® D-2700 Processor
- 4x DDR4 DIMMs, Max. 256GB RDIMM or Max. 512GB LRDIMM
- 4x 25GbE SFP28 ports on board
- 2x 2.5” SATA/NVMe hot-swappable HDD/SSD
- Optional for one card: 1x PCI-E (x16) Gen4 single-slot for double FHFL interfaces, passive cooling, up to 120W
- For two cards: 1x PCI-E (x16) Gen4 single-slot +1x PCI-E (x8) Gen4 FHFL interfaces, passive cooling, up to 75W each
- Optional IPMI 2.0 module
- GPS time synchronization
- Supports SyncE and PTP IEEE 1588
The INA8505 delivers unmatched performance, scalability, and efficiency with flexible storage, offering two SATA/NVMe 2.5” HDD/SSD slots, 2x M.2 (M-key) SATA/PCI-E storage slots, and one 16GB/32GB/64GB eMMC. With an FHFL PCI-E (x16) Gen4 (supports 75W) and an FHFL PCI-E (x8) Gen4 (supports 75W) configurable as PCI-E (x16) Gen4 double FHFL (supports 120W), the INA8505 adapts effortlessly into different network environments and meet future demands for increased scalability. It boasts a rich array of I/O connectivity options, including a VGA port from BMC (Aspeed 2600, IPMI 2.0 support), two USB2.0 Type-A ports, an RJ45 console port, and four 25 GbE SFP28 ports, ensuring enhanced adaptability to various connectivity needs.

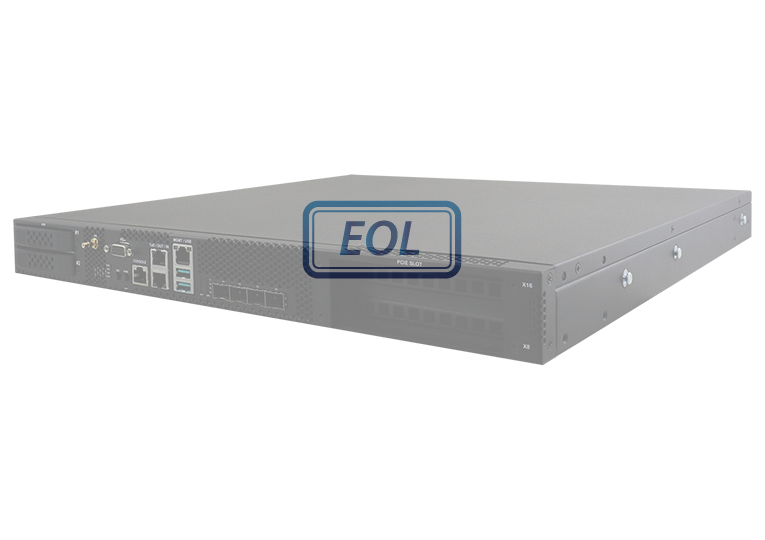

Designed with front access and a short-depth form factor, the INA8505 is perfect for space-constrained environments, making it convenient to operate, maintain, and integrate into existing infrastructure. Moreover, with GPS time synchronization, NEBS certification and DC power support, the INA8505 is well-suited for critical telecommunications and network deployments.
| System Mainboard | MBN8505 |
| CPU Type | Intel® Xeon® D-2700 Processor |
| System Speed | up to 3.50 GHz |
| Memory | 4x DDR4 DIMMs, Max. 256GB RDIMM or 512GB LRDIMM, up to 3200MHz |
| AI Inference Computing Power | NVIDIA L4 Tensor card |
| Front Panel External I/O | 1x LED, 1x Power switch, 1x MGMT, 1x RJ45 console, 1x VGA, 1x RS422, 2x USB3.0, 2x PCI-E expansion slot, 2x 2.5” Hot Swappable SATA/NVMe SSD, 4x 25GbE SFP28 |

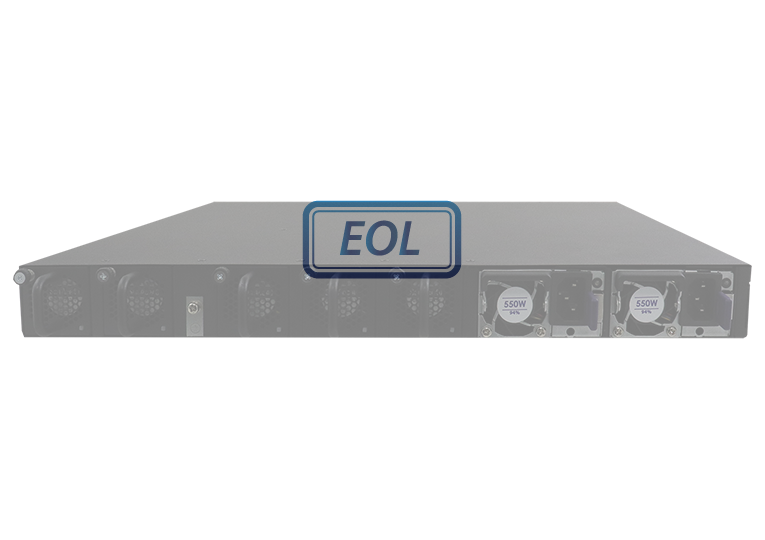

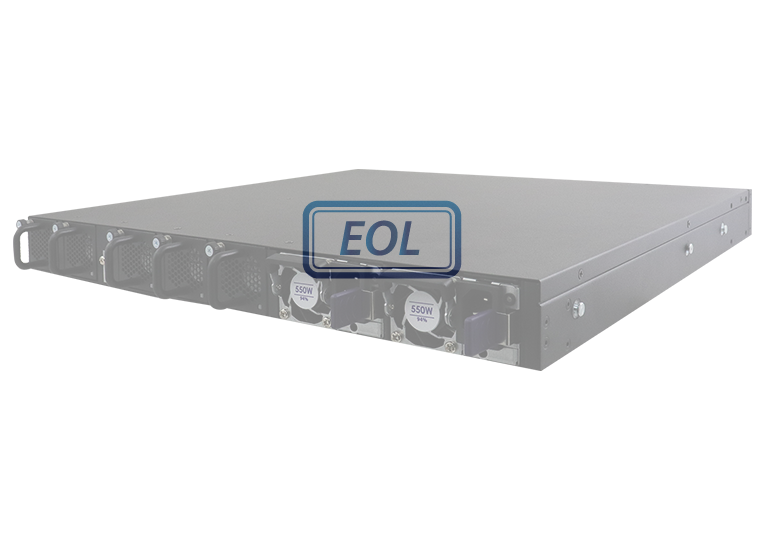

| Rear Panel External I/O | 1x AC Intel (2 AC 100~240V) 1x Swappable system fan (1+4 hot-swappable 40x40x28 mm fans) |
| Expansion Slot | 1x PCI-E x16 Expansion slot (optional by SKU) 1x PCI-E x8 Expansion slot (optional by SKU) |
| Storage | 1x 16GB/32GB/64GB eMMC 2x M.2 (M-Key); supports SATA & PCI-E 2x 2.5” SATA/ NVMe/ hot-swappable HDD/SSD |
| Power Requirement | 1+1 AC 100~240V @ 50~60 Hz full range 550W CRPS Redundant Power |
| Power Supply | Full-range 550W CRPS 1+1 redundant power supply |
| Construction | Aluminum & steel |
| Chassis Color | Black |
| Mounting | N/A |
| Weight | 15 kg (33.06 lbs) (estimated) |
| Dimensions | 438(W) x 420(D) x 43.8(H) mm 17.24” (W) x16.54” (D) x 1.72” (H) |
| Operating Temperature | 0°C ~ 50°C (32°F ~ 104°F) |
| Storage Temperature | -20°C ~ 70°C (-4°F ~ 158°F) |
| Relative Humidity | 5% ~ 90% |
| Vibration | Operating: 0.25 Grms (3~500Hz) Z-axis, duration 60 mins Non-operating: 1.0 Grms (3~500Hz) Z-axis, duration 60 mins |
| Shock | Operating :20G/11 ms, Z/Y/Z axis, each axis 3 times Non-operating: 40G/ 11ms, Z/Y/Z axis, each axis 3 times |
| Certification | CE/FCC |
| Operating System | Windows 11, Linux (6.5/ 11/ 22.04) |
| INA8505 | INA8505 Enterprise 1U Edge Server, MBN8505 Intel® Xeon® D-2700 Processor, 4x DDR4 DIMMs, 4x 25 GbE SFP28 ports, 550W CRPS 1+1 Redundant PSU, CPU cooler, optional IPMI, 1x PCI-E x16 slot, 1x PCI-E x8 slot, 2x 2.5” SDD Tray, Barebone without RAM/HDD/SSD |
| 製品のデータシート | INA8505 |
| 製品のカタログ | AI Computing Platform (Vol.25.12) |
