Intelligent Transportation
MPT-3110R
EN50155/EN45545 Certified Intel® Atom® x7000RE Series Processor Railway Computer System with M12 Connection and WWAN Redundancy
- EN50155 (2021) / EN45545-2 certified
- Robust M12 connectors for dual GbE, USB and power input
- Onboard isolated CAN 2.0A / 2.0B / CAN-FD
- Dual SIM sockets support WWAN redundancy
- Removable 2.5” device bay for SSD storage
- Ignition power control
- Wide-range voltage GPIO interface
- 1x USB Type-C Alternate mode with PD 60W
| System Mainboard | MBT-3111 |
| CPU Type | Intel® Atom® x7433RE Processor |
| Processor Speed | Up to 2.7GHz |
| Memory | 1x DDR5-4800 SO-DIMM socket Up to 16GB |

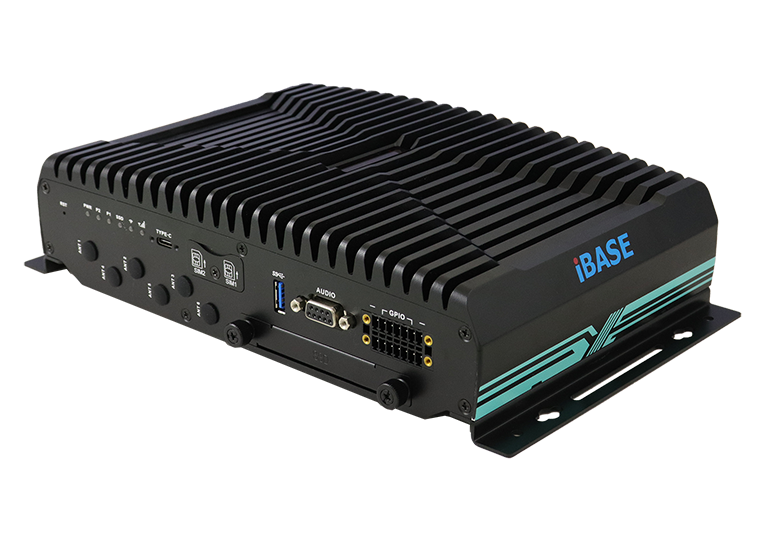

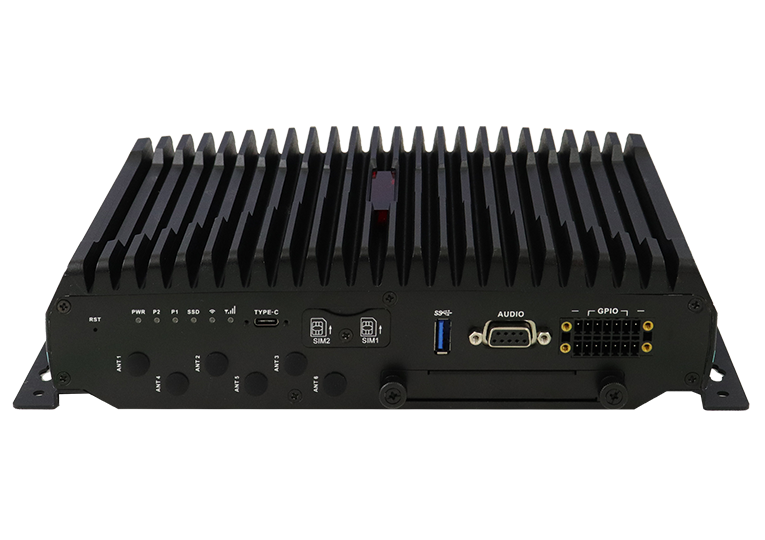

| Front panel I/O | 1x USB3.2 Gen2 Type-A connector 2x external accessible SIM socket 1x USB TYPE-C connector with screw-lock 1x Removable 2.5" SSD device bay 1x DB9 female connector for Line-out & MIC-in 1x 14-pin terminal block 6-in & 6-out digital I/O with 24V input and output 1x reset button 6x light-pipe for status LED Indicators 8x Antenna holes |

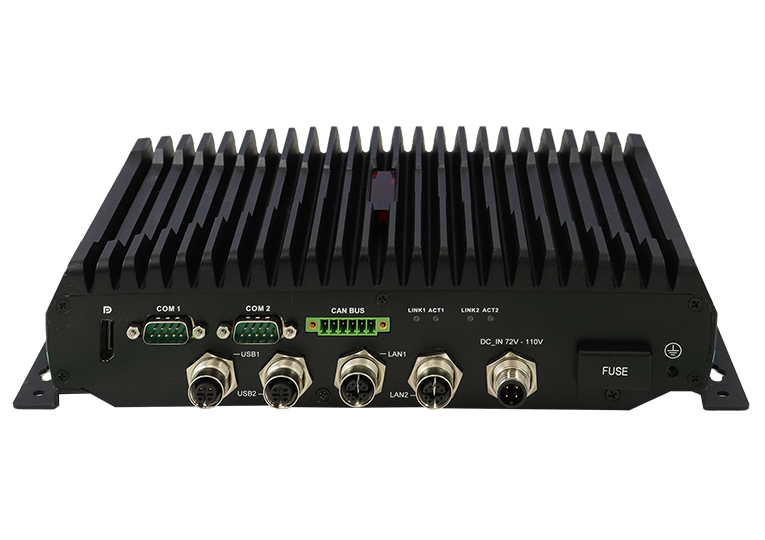

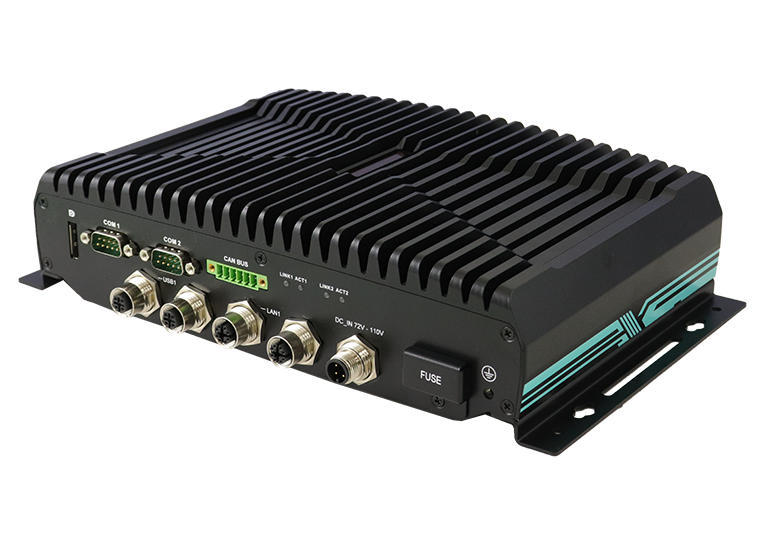

| Rear Panel External I/O | 2x M12 X-code 8P female for 2.5 GbE LAN1/LAN2 1x M12 4 pins A-code male for power input 2x M12 8 pins A-code female for 2x USB2.0 1x DisplayPort, 1x VGA connector (Option) 1x Terminal block DIP 6 pins for 2 x Can FD master 2x DB9M for COM#1 (RS232/422/485) / COM#2 (RS232 only) 1x M3 with washer screw hole for grounding connection 4x light-pipe for LAN status LED Indicators |
| Storage | 1x M.2 2280 M-Key socket for SSD (SATA III) 1x 2,5" removable device bay for SSD |
| Expansion slots | 1x M.2 2230 E-Key socket for WLAN & BT connection (PCI-E + USB2.0 + SMBus) 1x M.2 3042/52 B-Key socket for WWAN (4G/5G) connection (USB3.2 Gen.1 ) 1x M.2 2280 M-Key socket for SSD device (SATA III) 1x Mini PCI-E full-sized socket for MVB & add-on card (PCI-E + USB2.0 + SMBus) 1x Mini PCIe half-sized socket for GPS module (USB2.0 only) |
| Power Supply | DC-input 24V ~ 110V |
| Construction | Aluminum |
| Chassis Color | Black |
| Mounting | wall mount |
| Dimensions | 250 (W) x 150 (D) x 55 (H) mm 9.84” (W) x 5.9” (D) x 2.16” (H) |
| Operating Temperature | -40°C ~70°C (-40°F~158°F) (w/ industrial-grade SSD) |
| Storage Temperature | -40°C ~ 85°C (-40°F~185°F) |
| Relative Humidity | 10 ~ 95% RH @45°C (non-condensing) |
| Vibration | Function: 1 m/s2, 5Hz~150 Hz (EN 61373) Lifetime: 7.9 m/s2, 5Hz~150 Hz (EN 61373) |
| Shock | 50 m/s2, 30 msec (EN 61373) |
| Certified | EN 50155:2021, EN 45545 -2 HL1/2/3 2020 CE (EN 62368-1 / EN55032 / EN55035), FCC Class-A |
| MPT-3110R | MPT-3110R with MBT-3111 (Intel® Atom® x7433RE Processor), w/ 1x 8GB DDR5-5600, 2x SSD bay, No PSU, No storage (RoHS2) 24VDC |
| MPT-3110RH | MPT-3110R with MBT-3111 (Intel® Atom® x7433RE Processor), w/ 1x 8GB DDR5-5600, 2x SSD bay, No PSU, No storage (RoHS2) 72/110VDC |
| DATASHEETS | MPT-3110R |
| CATALOGS | Intelligent Transportation Solutions (Vol.25.05) |
| DRIVERS - SYSTEMS | MPT-3110R Driver DVD |
