Embedded Computing

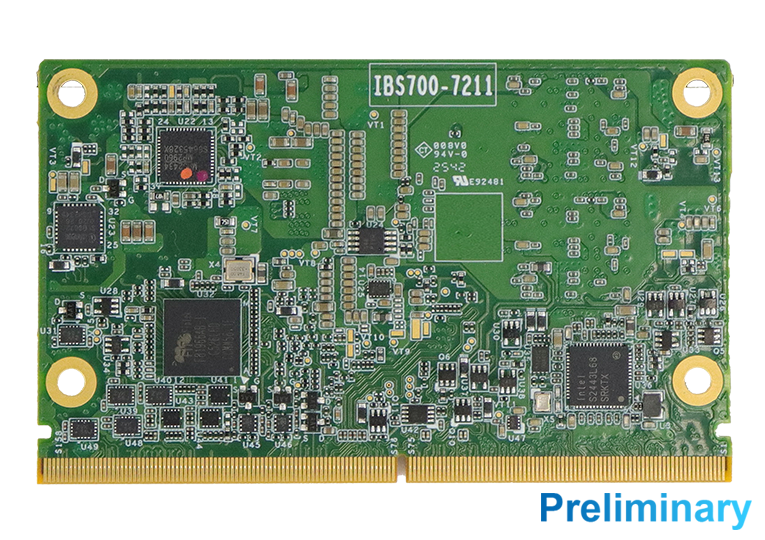

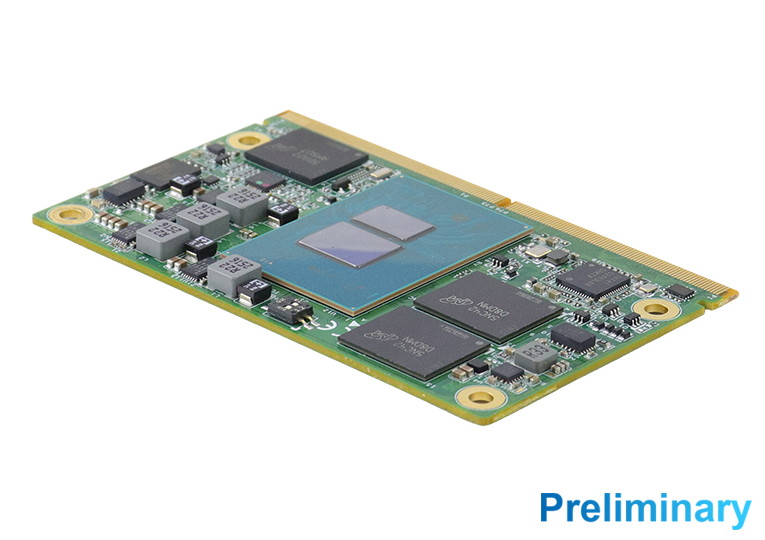

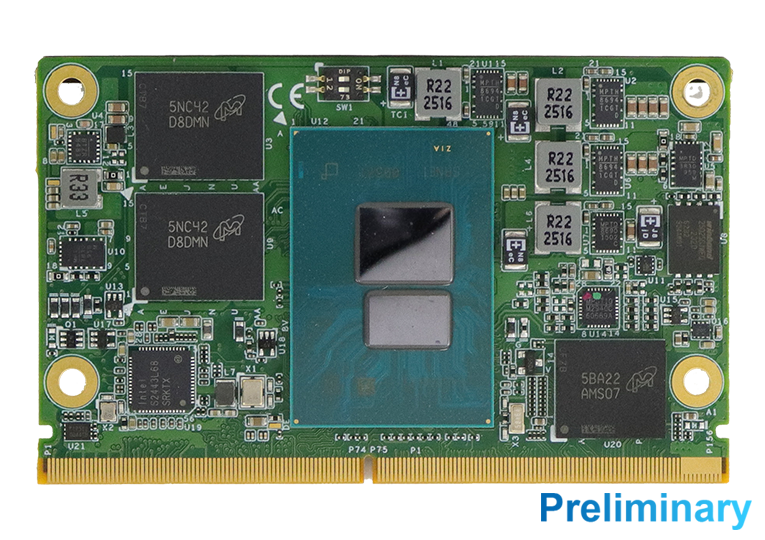

IBS700
SMARC™ 2.2 with Intel® Atom® x7000RE Series or N-Series processor
- Onboard Intel® Atom® x7000RE Series or N-Series processor
- 2x I226LM orI226IT PCIe 2.5G Lan
- 2x USB 3.2, 6x USB 2.0, 1x SATA III, 4x UART
- Supports 3x independent displays for DP / LVDS or eDP
- Digital I/O, TPM (2.0), Watchdog timer
| CPU | Intel® Atom® x7000RE Series or N-Series processor |
| PCH | Integrated in Intel® SoC |
| Memory | Onboard LPDDR5, 16GB |
| BIOS | AMI |
| Watchdog Timer | 256 levels |
| H/W Monitor | Yes |
| Storage Device Interface | eMMC 64GB |
| Expansion Slots | SMARC connector to carrier board |
| Graphics Controller | Intel® SOC integrated graphics |
| Video Output | DisplayPort, LVDS or eDP on carrier board |
| Ethernet | 2x Intel® I226LM(IT) 2.5 GbE RJ45 on carrier board |
| I/O Chipset | Fintek F81966AB-I onboard |
| Serial Port | 4 x UART ports: -UART 0: 4 wire -UART 1: 2 wire -UART 2: 4 wire -UART 3: 2 wire |
| USB 2.0 | 2x USB3.2 (10bps) via carrier board |
| USB 3.X | 6x USB2.0 via carrier board |
| Serial ATA | 1x SATA III via carrier board |
| Audio | Built-in HD Audio controller 1x HDA 1x I2S(Linux only) |
| TPM | 2.0 |
| Others | 12x GPIO 6~13 from F81966AB-I; 0~3 GPO (4 for HDA reset) |
| Dimensions (L x W) | 82mm x 50mm (3.23“ x 1.97“) |
| Power Consumption | N/A |
| Operating Temperature | 0°C~60°C ( 32°F~140°F) -20°C~70°C ( -4°F~158°F) (Wide Temp.) |
| Storage Temperature | -20°C~80°C (-4°F~176°F) |
| Relative Humidity | 90% (non-condensing @60°C) |
| DATASHEETS | IBS700 |
| DRIVERS - BOARDS | IBS700 Driver DVD |
