Edge AI & Intelligent System

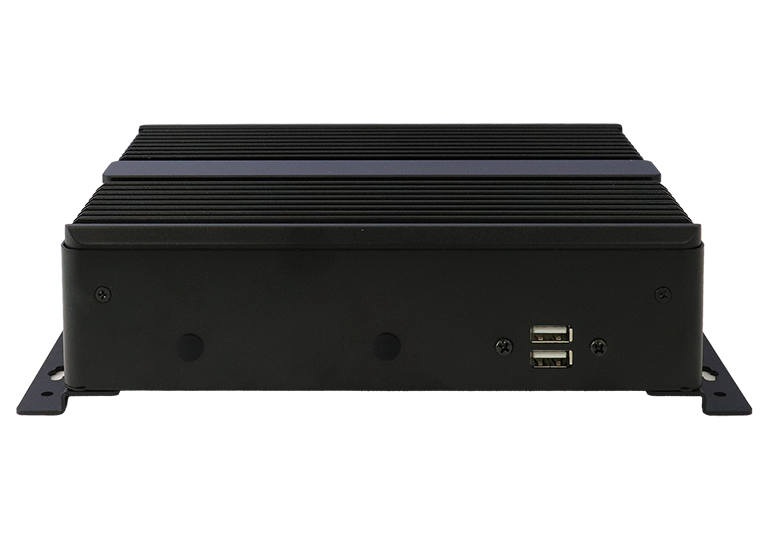

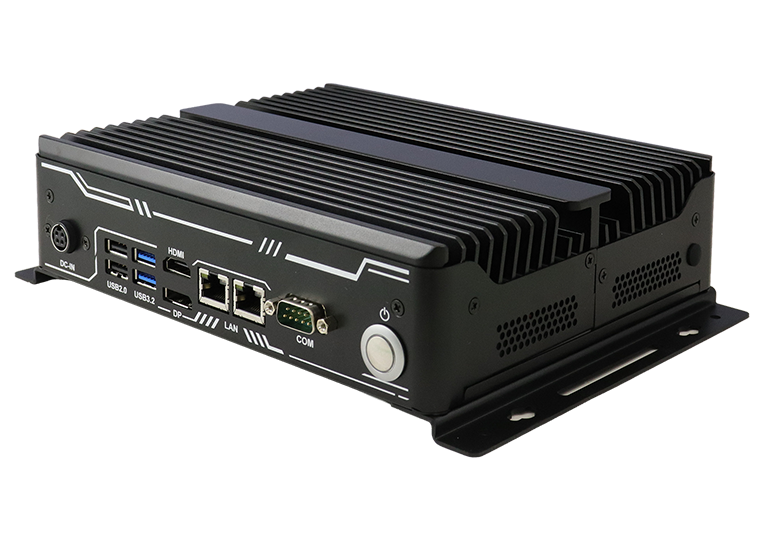

AA400-N
Edge AI Computer with AMD Ryzen™ Embedded 8000 Series Processors
- AMD Ryzen™ Embedded 8000 series APU on board, up to 8 cores/16 threads
- Dual Channel SO-DIMM, DDR5 5600, Max. 128GB (per DIMM), Total capacity: 256GB
- Supports 1x DP 2.1, 1x HDMI 2.1; Up to 8K resolution
- Graphics: RDNA3; NPU: XDNA, 39 TOPs
- 1x M.2 B-Key for 5G or LTE options
- 1x M.2 E-Key for Wi-Fi, Bluetooth or capture card options
The AA400-N is an ultra-compact fanless edge AI computer designed to provide system integrators with a powerful and flexible platform for next-generation intelligent applications. Powered by AMD Ryzen™ Embedded 8000 Series processors with up to 8 cores and 16 threads, the AA400-N integrates CPU, GPU, and NPU capabilities to deliver 39 TOPS of AI performance. Its compact, highly integrated design enables system integrators to develop responsive, space-efficient edge AI solutions for machine and robotic vision, autonomous inspection, smart retail, industrial automation, and other data-intensive applications.
Engineered for greater design flexibility, the AA400-N supports dual-channel DDR5-5600 memory with capacity up to 256GB, together with DisplayPort 2.1 and HDMI 2.1 outputs supporting resolutions up to 8K. Its versatile expansion architecture allows system integrators to tailor the platform to different project requirements, with M.2 B-Key support for optional 5G/LTE connectivity, M.2 E-Key support for WiFi, Bluetooth, or capture cards, and PCIe Gen4 x4 NVMe storage. Integrated 2.5GbE LAN, multiple USB ports, a COM port, and a Nano SIM socket further simplify peripheral integration and connectivity across a wide range of edge environments.
Measuring just 216 x 178 x 55 mm, the AA400-N delivers substantial edge AI capability in an ultra-compact fanless form factor, giving system integrators greater freedom to incorporate AI computing into space-constrained equipment and installations. With both DIN-rail and wall-mount options, plus support for Windows 11 and Ubuntu 22.04, the AA400-N provides a versatile platform that can be readily adapted to different system designs, helping integrators develop smarter, more connected, and application-ready edge AI solutions.
| System Mainboard | IB301; AMD Ryzen™ Embedded 8000 Series |
| CPU Type | AMD Ryzen™ Embedded 8000 series APU (8840U, 8640U) |
| System Speed | 3.3 GHz ~ 3.5 GHz |
| Memory | 2x SO-DIMM DDR5 16G/5600 |
| AI Inference Computing Power | 39 TOPs |
| Front Panel External I/O | 1x HDMI 2.1 2x USB 3.2 Gen1 Type-A 2x USB 2.0 Type-A 1x DC IN 12V ~ 24V DC 1x COM port 1x RJ45 for 2.5GbE |
| Rear Panel External I/O | 2x USB 2.0 Type-A |
| Expansion Slot | 1x PCIe Gen4 x4 (M.2 NVMe) M-Key Type 2280 1x M.2 (E-Key, Type:2230, supports CNVi) 1x M.2 (B-Key, Type:3052, supports 5G/LTE) 1x SIM socket (Nano SIM) |
| Storage | 1x M.2-2280 PCIE4x4 NVME, 256GB 3D TLC |
| Power Requirement | 12V ~ 24V DC |
| Power Supply | 1x DC in +12V (-10% tolerance) ~ +24V (+10% tolerance) input, Connector type: 4-pin, 45 W |
| Construction | SGCC |
| Chassis Color | Black |
| Mounting | DIN rail, wall mount |
| Weight | 3 kg |
| Dimensions | 215.6mm (W) x 177.6mm (D) x 55.2mm (H) |
| Operating Temperature | 0°C ~ 45°C |
| Storage Temperature | -20°C~80°C (-4°F~176°F) |
| Relative Humidity | 0%~ 90% (non-condensing) |
| Vibration | Operatiing: 1 grms / 3~500Hz / random operation |
| Shock | Operating: 20 g / 11 ms Non-operating: 40 g / 11 ms |
| Certification | CE, FCC & LVD |
| Operating System | Ubuntu 22.04 Windows 11 |
| AA400-NM | Fanless SYS with 3.5" AMD Ryzen™ Embedded 8000 series (Hawk Point 8840U, CPU Freq. 3.3 GHz up to 5.1 GHz, 8 Cores, 16 Threads, TDP @15), 12V/150W Power Adapter Included, w/o Memory and Storage |
| AA400-N8640M | Fanless SYS with 3.5" AMD Ryzen™ Embedded 8000 series (Hawk Point 8640U, CPU Freq. 3.5 GHz up to 4.9 GHz, 6 Cores, 12 Threads, TDP @15), 12V/150W Power Adapter Included, w/o Memory and Storage |
| DATASHEETS | AA400-N |
