嵌入式主板

IB966

3.5寸单板计算机 - 搭载Intel® Core™ Ultra 300系列处理器

Intel® Core™ Ultra 300 Series Processor (up to 180 TOPS)
2x DDR5 SO-DIMM, Max. 128GB
Supports HDMI,DisplayPort (DisplayPort connector & Type-C), LVDS and eDP
2x 2.5G LAN, 3x USB 3.2(Type-C&Type-A), 3x USB 2.0, 2x COM
3x M.2 slots (M2280+M2242+E2230), 12V~24V DC-in
Digital I/O (4-in/4-out), iAMT, dTPM & Watchdog Timer

产品介绍
产品规格
订购信息
档案下载

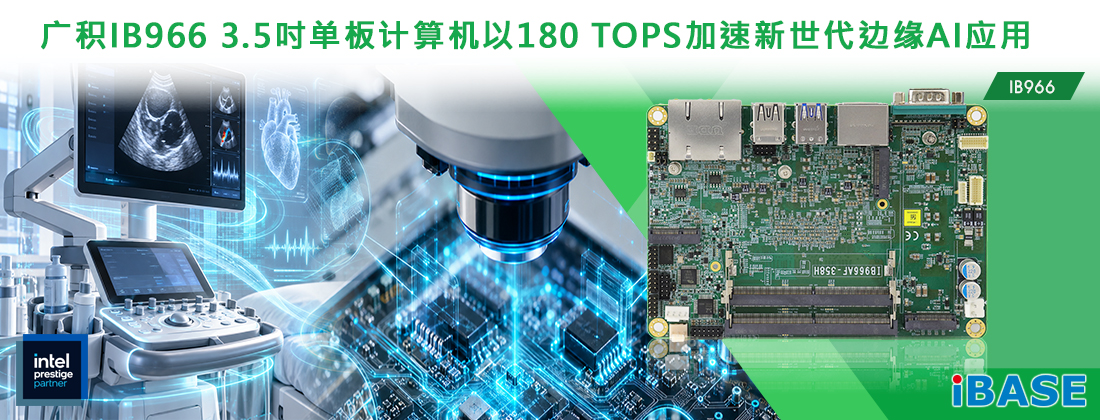

高效能IB966 3.5吋单板计算机，搭载Intel® Core™ Ultra系列3处理器(Panther Lake平台)，在最高规格配置下，可提供高达180 TOPS的整体AI运算效能，为边缘端即时AI推理、机器视觉、资料分析及工业自动化应用提供强大运算能力。

IB966可搭载Intel Core Ultra X7 358H、Intel Core Ultra 7 356H或Intel Core Ultra 7 355处理器，于单一平台整合CPU、GPU与NPU运算资源。其异质运算架构可依不同工作需求，将运算任务分配至最合适的处理单元，加速边缘端即时决策，同时降低延迟、网路流量及对云端运算的依赖。双DDR5-7200 SO-DIMM插槽最高支援128GB记忆体，可满足资料密集型边缘AI应用及高效多工处理需求。

IB966提供丰富的连接与扩充介面，包括两组2.5GbE、USB 3.2、USB 2.0及两组RS232/422/485。显示输出支援HDMI、DisplayPort、具备DisplayPort功能的USB Type-C、LVDS及eDP，并配置三个M.2插槽，可支援高速NVMe储存及无线连线。其他功能包括12V–24V直流电源输入、数位I/O、Intel® AMT主动管理技术、独立式TPM及可程式化看门狗计时器，提升系统建置的安全性、管理效率与运作可靠性，适用于机器视觉、智慧制造、智慧交通、医疗影像、智慧零售及其他高效能边缘AI应用。

CPU	Intel® Core™ Ultra 300 Series Processor
PCH	N/A
Memory	2x DDR5 SO-DIMM, 7200MT/s, Non-ECC, Max.128GB
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	2x M.2 (M2280& M2242 for NVMe)
Mini Type Slots	1x M.2 (M2280, supports NVMe only) 1x M.2 (M2242, supports NVMe only) 1x M.2 (E2230, supports CNVi)
Graphics Controller	Intel® Core™ Ultra 300H Processor built-in Xe3 Graphics
Video Output	HDMI, DisplayPort (DisplayPort connector & Type-C), LVDS and eDP
Ethernet	Intel® I226LM as 1st LAN, I226V as 2nd LAN
I/O Chipset	Fintek F81804U-I on board
Serial Port	2x RS232/422/485
USB 2.0	3x USB 2.0 (1x Type-A ; 2x via pin headers)
USB 3.X	1x USB 3.2 (Type-C), 2x USB 3.2 (Type-A)
Serial ATA	N/A
Audio	Intel® Core™ Ultra processor built-in HD audio + ALC888S codec
TPM	dTPM
Others	Digital I/O (4-in/4-out), iAMT; +12V~+24V DC-in
Dimensions (L x W)	102mm x 147mm (4“ x 5.8“)
Power Consumption	TBD
Operating Temperature	0°C~60°C (32°F~140°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	10% ~ 90% (non-condensing)

IB966AF-358H	Intel® Core™ Ultra X7 358H SoC, onboard 3.5" SBC, w/ dual 2.5Gb, HDMI + 2x DisplayPort (DisplayPort connector & Type-C), LVDS & eDP, 2x COM, 3x M.2, supports iAMT& dTPM, DC-in (12V~24V),Optional heatsink
IB966AF-356H	Intel® Core™ Ultra 7 356H SoC, onboard 3.5" SBC, w/ dual 2.5Gb, HDMI + 2x DisplayPort (DisplayPort connector & Type-C),LVDS & eDP 2x COM, 3x M.2, supports iAMT& dTPM, DC-in (12V~24V),Optional heatsink
IB966AF-355	Intel® Core™ Ultra 7 355 SoC, onboard 3.5" SBC,w/ dual 2.5Gb, HDMI + 2x DisplayPort (DisplayPort connector & Type-C),LVDS & eDP, 2x COM, 3x M.2, supports iAMT& dTPM, DC-in (12V~24V),Optional heatsink
HSIB966-B	Heatsink with fan for IB966
HSIB962-2	Heat Spreader for IB966
IB76A-3	Cable Kit w/ USB, COM & Power

产品数据表	IB966
产品型录	Embedded Computing (Vol.2605)
使用手册	IB966 V1.0 (IBASE Server) IB966 V1.0 (Google Drive)
驱动程序 - 主板	IB966 Driver DVD
