嵌入式主板

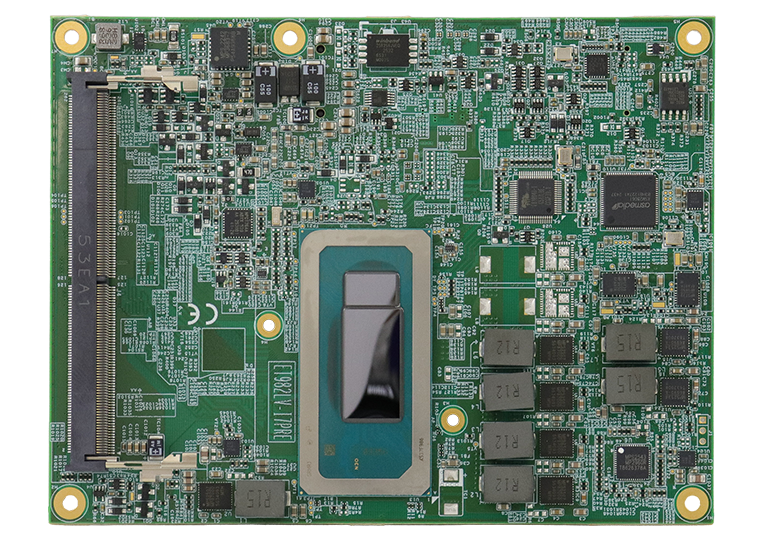

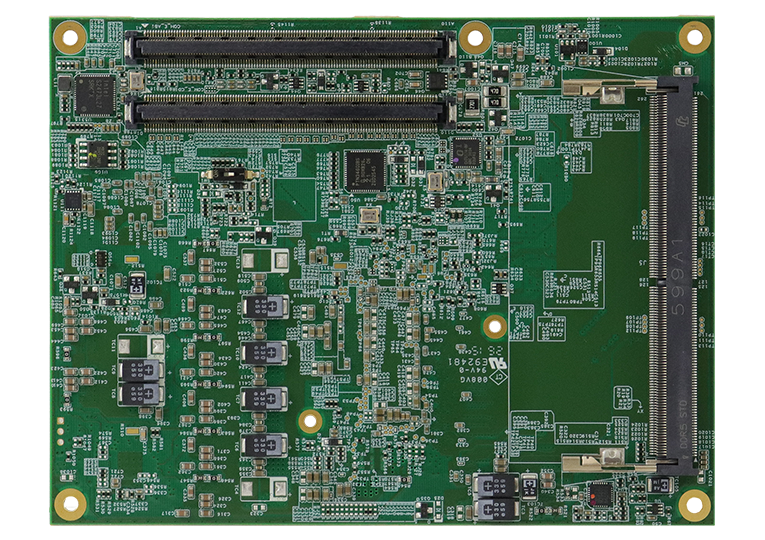

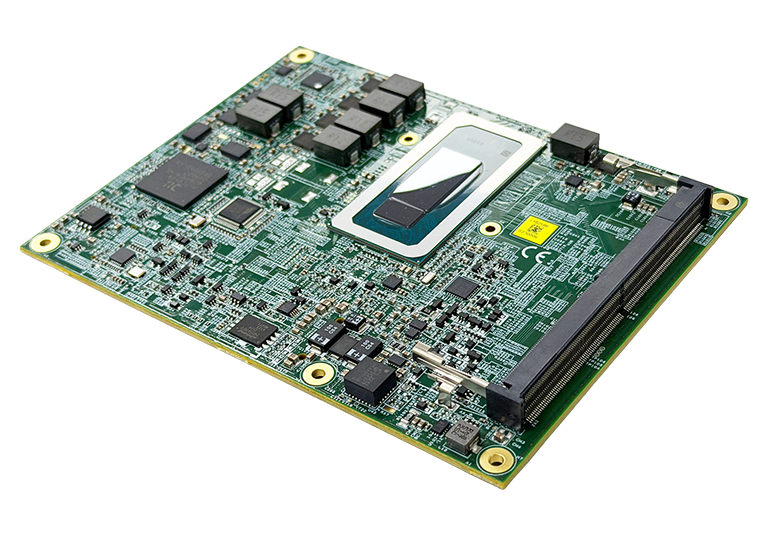

ET982
COM Express Type 6 (R3.1) 嵌入式计算机模块 - 搭载第13代 Intel® Core™ i处理器
- Onboard 13th Gen Intel® Core™ i7/i5/i3 processors
- 2x DDR5-5200 SO-DIMM sockets, Max. 64GB
- Supports 3x independent displays from HDMI / DP / VGA / LVDS or eDP
- 1x onboard 2.5 GbE LAN
- 4x USB 3.2, 8x USB 2.0, 2x SATA III, 2x COM
- 1x PCIe (x16), 1x PCIe (x4), 4x PCIe (x1) signals to carrier board
- Watchdog Timer, Digital I/O, TPM (2.0)
- Supports wide-range operating temperature from -40°C to 75°C (Only ET982LV-I7PRE)
| CPU | BGA1744 for 13th Gen Intel® Core i7/i5/i3 mobile processors (SoC) |
| PCH | Integrated in SoC |
| Memory | 2x DDR5-5200 SO-DIMM sockets, Max. 64GB |
| BIOS | AMI |
| Watchdog Timer | 256 levels |
| H/W Monitor | Yes |
| Storage Device Interface | N/A |
| Expansion Slots | 1x PCIe (x16), 1x PCIe (x4), 4x PCIe (x1) signals to carrier board |
| Graphics Controller | 13th Gen Intel® Core processors integrated graphics |
| Video Output | HDMI, DisplayPort, VGA, LVDS or eDP on carrier board |
| Ethernet | 1x Intel® I226LM 2.5GbE (RJ45 via carrier board) |
| I/O Chipset | Fintek F81804U-I onboard |
| Serial Port | 2x COM ports (Tx/Rx only) via carrier board |
| USB 2.0 | 8x USB 2.0 via carrier board |
| USB 3.X | 4x USB 3.2 (10 Gbps) via carrier board |
| Serial ATA | 2x SATA III via carrier board |
| Audio | Integrated HD Audio controller |
| TPM | TPM (2.0) |
| Others | Digital I/O (4-in/4-out), Watchdog Timer |
| Dimensions (L x W) | 95mm x 125mm (3.74" x 4.92") |
| Power Consumption | TBD |
| Operating Temperature | -40°C to 75°C ( 40°F~167°F) for ET982LV-I7PRE 0°C~60°C ( 32°F~140°F) |
| Storage Temperature | -20°C ~ 80°C (-4°F ~ 176°F) |
| Relative Humidity | 90% RH (non-condensing @60°C) |
| ET982LV-I7PRE | COM Express (Type 6) module w/ Intel® i7-1370PRE onboard, supports LVDS |
| ET982LV-I7P | COM Express (Type 6) module w/ Intel® i7-1370PE onboard, supports LVDS |
| ET982-I7U | COM Express (Type 6) module w/ Intel® i7-1365UE onboard, supports eDP |
| IP414 | ATX COM Express Type-6 carrier board, supports ATX |
| IP414-DC | ATX COM Express Type-6 carrier board, supports DC-in |
| HSET981-A | Heatsink with fan for ET981/ET982 |
| HSET980-3 | Heat spreader for ET981/ET982 |
| 产品数据表 | ET982 |
| 产品型录 | Embedded Computing (Vol.2605) |
| 使用手册 | ET982 V1.0 (IBASE Server) ET982 V1.0 (Google Drive) |
| 驱动程序 - 主板 | ET982 Driver DVD |
