嵌入式边缘运算系统
CMI211-1005
搭载ntel® Core™ Ultra 200H 系列处理器的嵌入式计算机系统
- Intel® Core™ Ultra 200H series mobile onboard processors, up to 65W
- 2x DDR5 cSO-DIMM, Max. 96GB, Non-ECC
- supports 2x Type-C, 1x HDMI and 1x DisplayPort(DP++)
- LAN 1: Intel® I226LM, supports 2.5G and iAMT
- LAN 2 / LAN 3: Intel® I226V, supports 2.5G only
- 4x USB 3.2 , 2x USB Type-C, 4x USB 2.0, 2x COM
- Supports 1x PCIe (x4) [Gen.4.0]; 3x M.2 (E-key @2230 and 2x M-key @2280 & 2242 )
CMI211-1005可扩展式边缘 AI 电脑搭载Intel® Core™ Ultra 200H系列处理器，整合CPU、GPU与NPU运算引擎，可提供最高99 TOPS AI效能，加速边缘端即时AI推理、智能数据处理与决策。 本系统采用轻巧机身设计，同时具备弹性扩充能力，适用于智能制造、机器视觉、工业自动化、智能零售，以及其他空间受限的 AI 应用。
The CMI211-1005 is a compact and expandable edge AI computer powered by Intel® Core™ Ultra 200H Series processors. Integrating CPU, GPU, and NPU computing engines, the system delivers up to 99 TOPS of AI performance to accelerate real-time inference, intelligent data processing, and decision-making at the edge. Its compact form factor makes it well suited for smart manufacturing, machine vision, industrial automation, intelligent retail, and other space-constrained AI applications.
Engineered to accelerate the development of intelligent edge solutions, the CMI211-1005 supports up to 96GB of DDR5 memory and features a PCIe Gen 4 x4 expansion slot for AI accelerators, frame grabbers, communication cards, and other application-specific modules. Two M.2 M-key sockets support high-speed NVMe storage, while an additional M.2 E-key socket enables wireless connectivity. This flexible architecture allows system integrators to tailor and scale the platform to meet diverse performance, storage, and connectivity requirements.
The CMI211-1005 also provides comprehensive I/O connectivity, including three 2.5GbE LAN ports, dual USB Type-C ports, HDMI, DisplayPort, multiple USB interfaces, and serial ports for connecting cameras, sensors, displays, and industrial equipment. Combining integrated AI acceleration, high-speed networking, flexible expansion, and a compact industrial design, the CMI211-1005 gives system integrators a reliable and scalable platform for building next-generation edge intelligence solutions.
| System Mainboard | MI1005AF |
| CPU Type | Intel® Core™ Ultra 200H series mobile Processors |
| PCH | N/A |
| System Speed | Up to 5.4 GHz (Core™ Ultra 9 285H) |
| Memory | 2x DDR5 SO-DIMM sockets, Up to DDR5-6400 cSO-DIMM memory module, Max. 96GB |

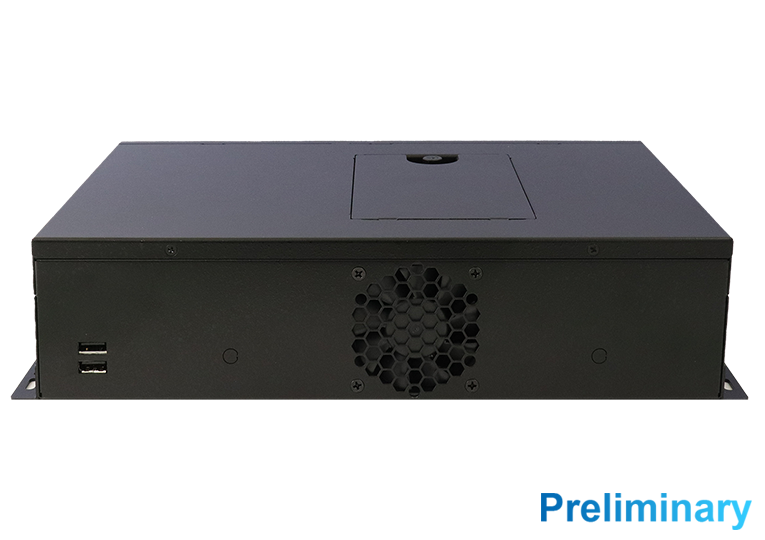

| Front-side Panel I/O | 2x USB 2.0 ports 2x Antenna holes |

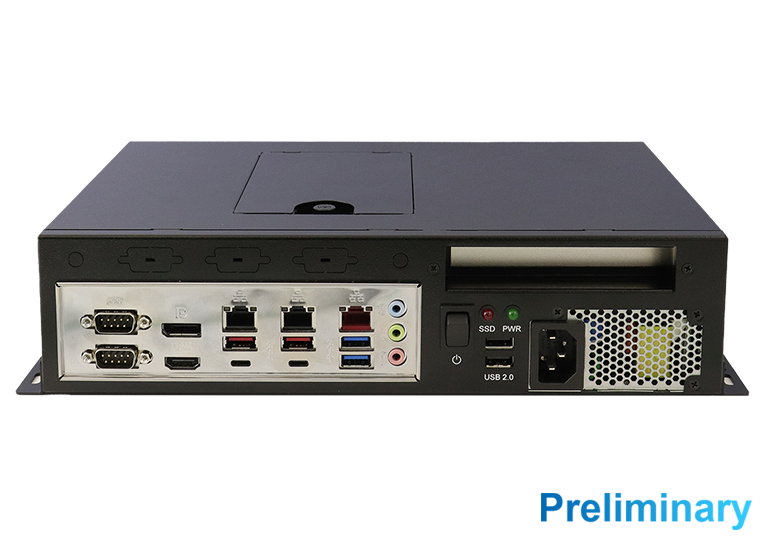

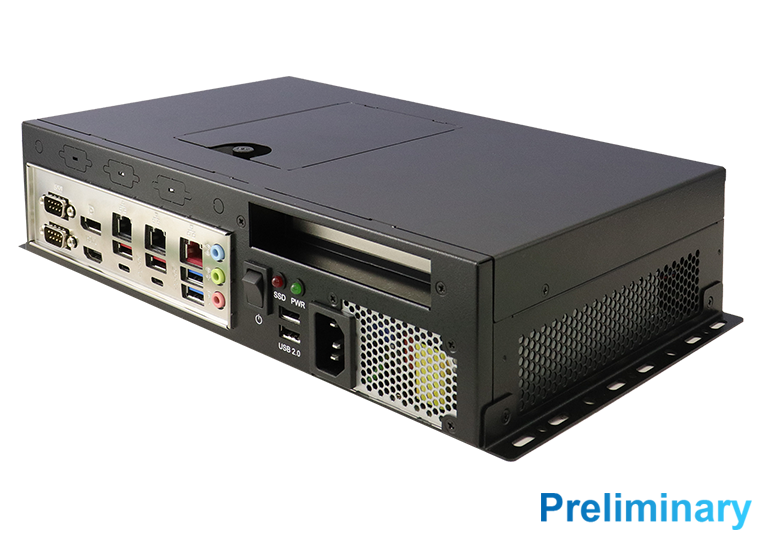

| Rear-side Panel I/O | 1x AC-inlet 1x Power switch (rocker switch) 1x Power LED indicator 1x Storage LED indicator 2x USB2.0 ports 2x DB9 for COM#1/COM#2 (COM#1 with RS232/422/485, select from BIOS) 1x DP + 1x HDMI 2x (USB Type-C + USB3.2 Type-A + RJ45 connector) 1x (Dual USB3.2 Type-A + RJ45 connector) 1x 3-in-1 audio jack 2x Antenna holes |
| Storage Interface | SATA: 1x 2.5" Storage drive bay M.2: 2x M.2 (M2280 & M2242) |
| Expansion Slots | PCIe Expansion: 1x PCIe (x4)[Gen.4.0] expansion slot M.2: 1x E-key E2230, 2x M-key (M2280 & M2242) Add-on card Max. Size: 111mm(W) x 168mm(D) x 18mm(H) |
| Power Supply | Industrial 250W ATX power supply Input voltage: 100V ~ 240V Input frequency: 47Hz ~ 63Hz Compatible with IEC62368-1/EN62368-1 |
| Construction | SECC |
| Chassis Color | Black |
| Mounting Type | Wall mount & Desktop |
| Dimensions | 300mm (W) x 205mm (D) x 72mm (H) 11.81” (W) x 8.07” (D) x 2.83” (H) |
| Weight | 3.2 kg |
| Operating Temperature | 0°C~45°C (32°F~113°F) |
| Storage Temperature | -20°C~80°C (-4°F~176°F) |
| Relative Humidity | 5% ~ 90% @45C (non-condensing) |
| Vibration | Non-Operating : 1.0 grms / 5~500Hz / random Operating : 0.25 grms / 5~500Hz / random |
| Certification | CE / LVD / FCC Class B |
| CMI211-1005AFM | Barebone system with MI1005AF+ IP201 riser card, w/o SSD, memory, w/ 250W PSU, 2.5" storage holder, 1x PCIe (x4) expansion slot (RoHS2) |
