嵌入式边缘运算系统
ACS313
搭载第13代Intel® Core™ i7/i5/i3/U300E处理器的轻巧型电脑系统
- Compact Expandable System for MBE330 proprietary board
- 13th Gen Intel® Core™ i7/i5/i3/U300E Processors
- Supports dual-channel DDR5-5200 SO-DIMM
- 2x USB Type-C (DP Alternate Mode), supports up to 60W per port
- Removable drive bay for 2.5 inch HDD/SSD
- Over/Under/Reverse voltage protection
- Supports DIN-rail mount & wall mount
- Supports TPM 2.0 hardware security
- Isolated COM 1 and COM2
- HDMI, 2x DP++, 2x USB-C (DP Alternate Mode) supports up to 4x independent displays
- 6x USB 3.2
- 4x internal M.2 sockets for 2x storage, Wi-Fi/BT, and 4G/5G communication with Dual Nano SIM slots
ACS313是一款工业级强固型边缘电脑，搭载第13代Intel® Core™处理器，并支持双通道DDR5内存，可为各类边缘运算应用提供高性能运算能力。 系统支持两组USB-C电力传输（最高60W + 60W）及四组独立显示输出，并可整合5G连网能力，满足边缘端可视化与实时数据处理需求。
ACS313将高效能运算、丰富连接能力与模块化扩充等功能整合于轻巧型的无风扇设计中，不仅提升系统可靠度与稳定性，也能因应不同应用需求进行灵活扩充，特别适用于工业自动化、智慧零售及智能边缘控制系统等应用领域，协助企业加速导入智慧化与即时运算架构。
| System Mainboard | MBE330 |
| CPU Type | Intel® U300E Processor (Five-Core @ 4.3GHz) Intel® Core™ i3-1315UE Processor (Six-Core @ 4.5GHz) Intel® Core™ i5-1335UE Processor (Ten-Core @ 4.5GHz) Intel® Core™ i7-1365UE Processor (Ten-Core @ 4.9GHz) |
| System Speed | Intel® Raptor Lake U300E Processor (Five-Core up to 4.3GHz) Intel® Core™ i3-1315UE Processor (Six-Core up to 4.5GHz) Intel® Core™ i5-1335UE Processor (Ten-Core up to 4.5GHz) Intel® Core™ i7-1365UE Processor (Ten-Core up to 4.9GHz) |
| Memory | 2x DDR5-5200 SO-DIMM, Max. 96GB |

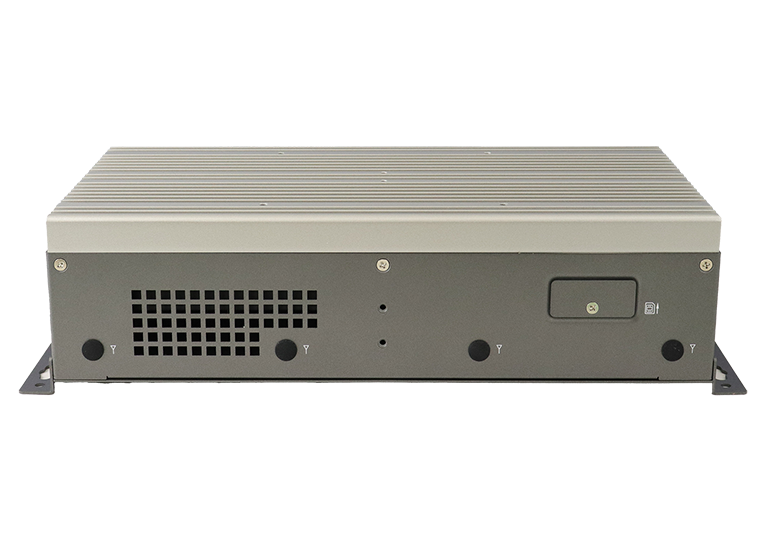

| Front Panel External I/O | 6x antenna holes 2x Nano SIM slots |

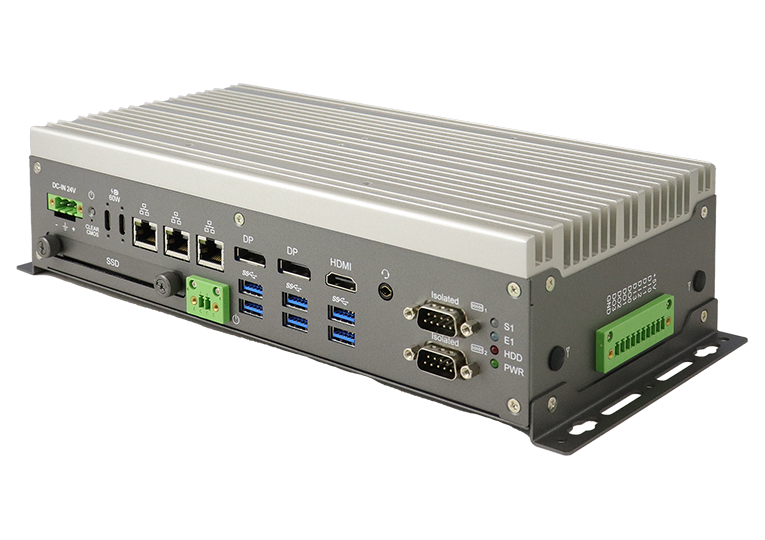

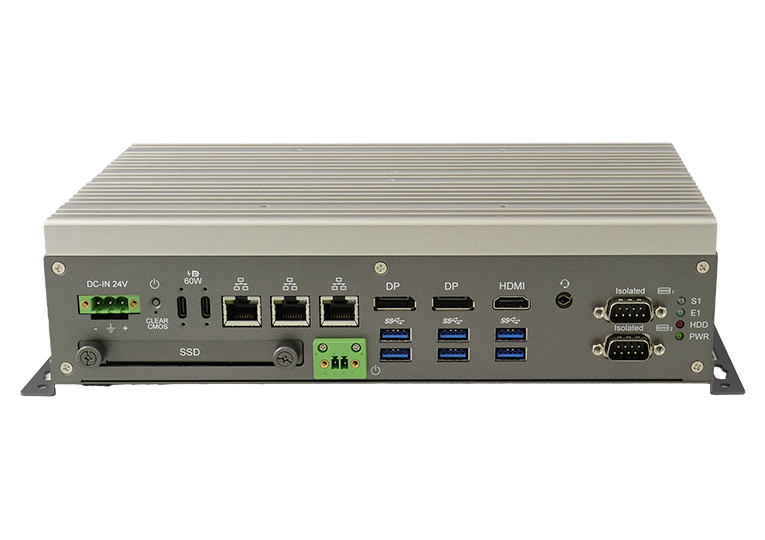

| Rear Panel External I/O | 6x USB 3.2 Gen.1 2x USB Type-C (DP Alternate Mode) with PD, up to 60W per port 2x isolated COM 3x 2.5GbE 2x DP++ 1.4 1x HDMI 2.0 1x audio combo Jack 3-pin bare-wire DC-In, 24V 1x remote power switch connector 1x power button 1x Clear CMOS button |
| Expansion Slots | 2x M.2 2280 M-key sockets 1x M.2 2030 E-key socket [supports USB 2.0 & PCIe x1] (for Wi-Fi/BT module) 1x M.2 3052 B-key socket [supports USB 2.0/3.0 & PCIe x1] (for 4G/5G) |
| Storage | 2x M.2 M-key (2280), 1x 2.5" HDD Removable |
| Construction | Aluminum & SGCC |
| Chassis Color | Silver / Gray |
| Mounting | VESA 100 x 100 mm, wall mount, optional DIN-rail kit |
| Dimensions | 275mm (W) x 140mm (D) x 70mm (H) 10.83” (W) x 5.51” (D) x 2.76” (H) |
| Weight | 2.75 kg |
| Operating Temperature | -10°C ~ 60°C (14°F ~ 140°F) *with airflow -10°C ~ 50°C (14°F ~ 122°F) without airflow |
| Storage Temperature | -20°C ~ 80°C (-4°F ~ 176°F) |
| Relative Humidity | 5% ~ 90% @ 45°C (non-condensing) |
| Vibration | Operating: 3Grms / 5~500Hz |
| Shock | Operating : 20G / 11ms Non-operating : 40G / 11ms |
| Certification | CE/LVD/FCC Class B |
| ACS313-U3 | Intel® Raptor Lake U300E Processor (Five-Core up to 4.3GHz) onboard, w/o memory / storage / O.S. / AC adaptor, Supports VESA 100x100mm and desktop / wall mount brackets (RoHS2) |
| ACS313-i3 | Intel® Core™ i3-1315UE Processor (Six-Core up to 4.5GHz) onboard, w/o memory / storage / O.S. / AC adaptor, Supports VESA 100x100mm and desktop / wall mount brackets (RoHS2) |
| ACS313-i5 | Intel® Core™ i5-1335UE Processor (Ten-Core up to 4.5GHz) onboard, w/o memory / storage / O.S. / AC adaptor, Supports VESA 100x100mm and desktop / wall mount brackets (RoHS2) |
| ACS313-i7 | Intel® Core™ i7-1365UE Processor (Ten-Core up to 4.9GHz) onboard, w/o memory / storage / O.S. / AC adaptor, Supports VESA 100x100mm and desktop / wall mount brackets (RoHS2) |
| 产品数据表 | ACS313 |
| 产品型录 | Intelligent Systems (Vol.26.01) |
| 驱动程序 - 系统 | ACS313 Driver DVD |
