数字广告牌播放系统

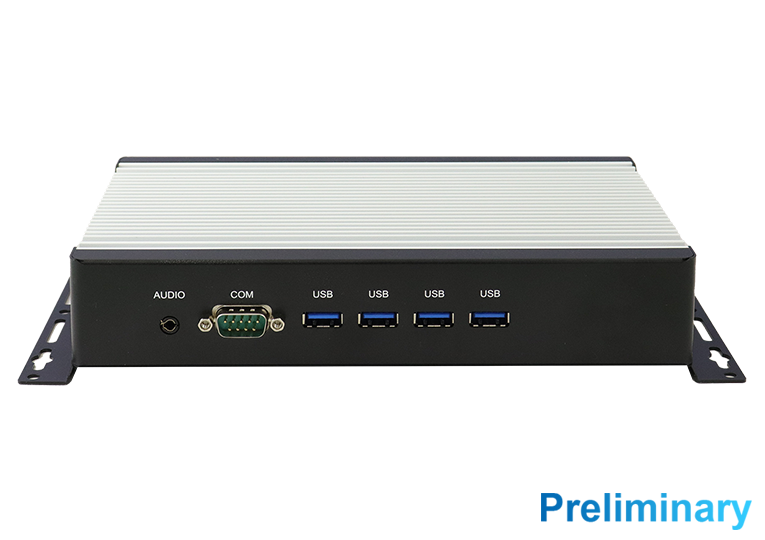

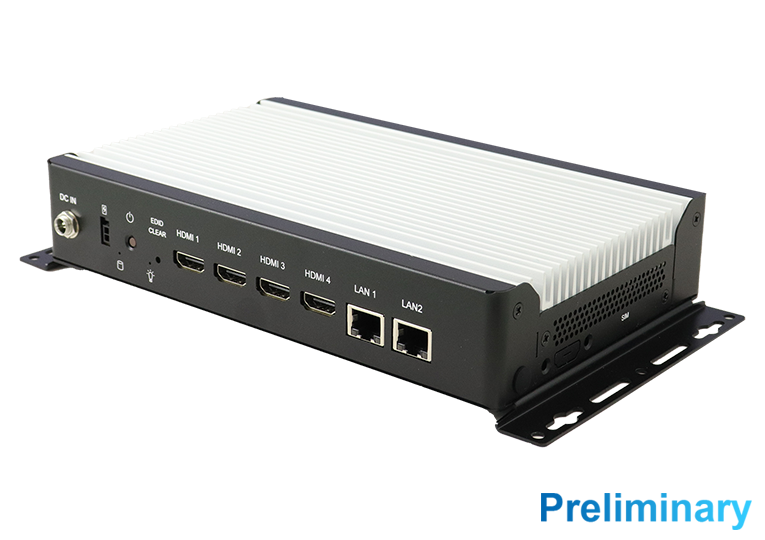

SI-664-N
Intel® Core™ Ultra Processors Series 1 (Meteor Lake) Fanless Signage Player
with Intel® Graphics built-in and One HDMI 2.1 and three HDMI 2.0b
- iSMART intelligent energy-saving technology - enables power on/off scheduling and power resume functions
- Intel® Core™ Ultra Processors Series 1 (Meteor Lake)
- 4x HDMI 2.0 with independent audio output
- Built-in hardware EDID emulation function
- HDMI-CEC and display monitoring functions
- 2x DDR5-5600 SO-DIMM, dual channel, Max. 96GB
- 1x M.2 B-key (3052) for 5G
- 1x M.2 E-key (2230) for WiFi, Bluetooth
- TPM 2.0, vPro and watchdog timer
- Industrial-grade robust, fanless and compact design
- Supports OOB function via I210IT LAN port (optional)
- Supports PDPC (Peripheral Device Power Control) function
| System Mainboard | MBD664 |
| CPU | Intel® Core™ Ultra 7/5 Processors |
| CPU Socket | FCBGA2049 |
| Chipset | Integrated |
| Memory | 2x SO-DIMM DDR5 5600 MHz, Max. 96GB |
| Graphics | Intel® Graphics |
| LAN | 1x 2.5 Gb LAN 1x 1.0 Gb LAN with optional OOB/In-band optional function support |
| Expansion Slots | 1x M.2 M-key (2280) for storage 1x M.2 E-key (2230) for WiFi, Bluetooth 1x M.2 B-key (3052) for 5G/LTE 1x UIM/SIM card slot |
| I/O Interface | 1x HDMI 2.1 + 3x HDMI 2.0b 4x USB 3.1 (with 1x PDPC function included) 2x RJ45 for Gigabit LAN 1x DB9 for RS-232 serial port 1x 2-PIN Header for SYS on/off control cable 1x Audio connector for Line-out 1x Power Button 1x Power Jack (+12V DC) 2x LED for Power & Storage |
| Auto Control and Monitoring | Watchdog Timer: 256 segments, 0, 1, 2…255 (sec/ min) |
| Power Requirement | +12V DC |
| Construction | Aluminum + SGCC |
| Weight | TBD |
| Chassis Color | Black & White |
| Storage | 1x M.2 E-key (2280) |
| Power Supply | 150W power adaptor |
| Mounting | Standard system bracket |
| Dimensions | 220mm(W) x 137mm(D) x 46.5mm(H) |
| Operating Temperature | 0°C ~ 45°C (32°F ~ 113°F) |
| Storage Temperature | -20° ~ 80°C (-4°F ~ 176°F) |
| Relative Humidity | 10%~90% (non-condensing) |
| Vibration | M.2: 5 grms / 5~500Hz / random operation |
| Certification | CE, FCC Class B, cULus |
| Operating System | Windows 11 IoT Enterprise RS5 64-bit Linux Ubuntu 64-bit |
| 产品数据表 | SI-664-N |
